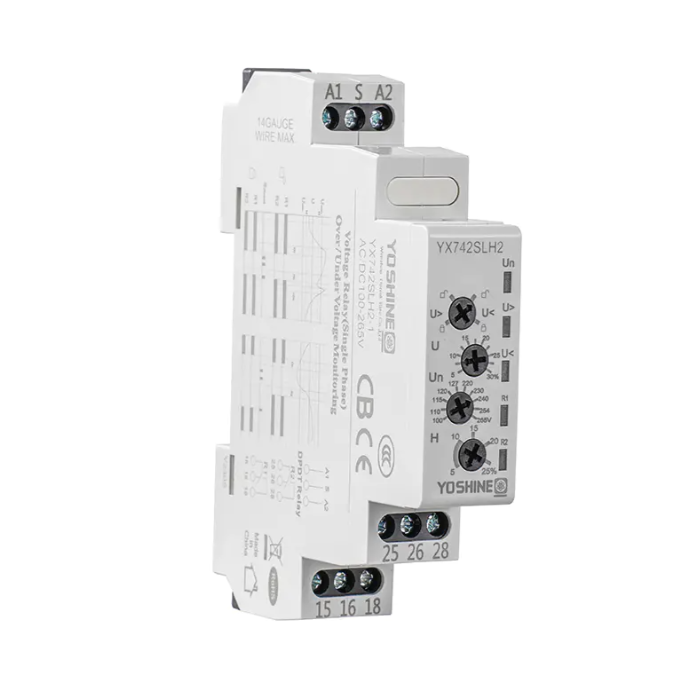

YOSHINE Single-Phase Automatic Reset Voltage Protection Relay
■ Technical Data YX742SLH2
■ Monitoring Type Single Phase
■ Output CharacteristicsDPDT
■ Working Voltage 100-265VAC/DC
■ Frequency50/60Hz
■ Over Voltage 5~30%
■ Under Voltage5~30%
■ Protection Delay 4S
■ Hysteresis Voltage5~25%
■ Recovery Delay 0.1S
■ Phase Sequence-
■ Phase Failure –
■ Asymmetrical Voltage-
■ Response Time of Relay 0.1S
■ Contact Rating3A/250VAC
■ Ambient Temperature -10°C~+55°C
■ Setting Tolerance±10%MAX
■ Repeatability ±2%MAX
■ Temperature Error±2%MAX
