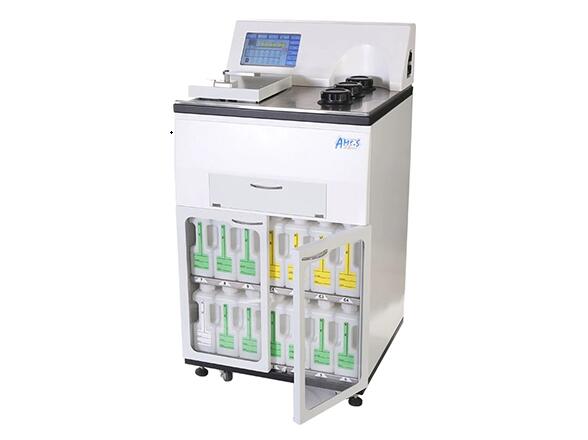

AVTP2500 Vacuum Tissue Processor

AVTP2500 Vacuum Tissue Processor

Our Vacuum Tissue Processor is an essential tool for rapid and precise histological specimen processing. Its vacuum-assisted technology expedites tissue fixation and dehydration, enhancing laboratory efficiency while maintaining sample quality.



Description of AVTP2500 Vaccum Tissue Processor

User friendly and easy to learn color touch screen with graphic symbols.



Every work status be clearly displayed in large color touch screen.



Simplified software with intelligent control.



Automatic reagant replacement: when the alcohol in the first tank has been used for the set number of times, it will remind you that the alcohol concentration is lower than required. The alcohol in this tank will be discharged first, and the alcohol in other tanks can automatically move forward in sequence, thereby saving reagents.



Up to hundreds of protocols to meet different tissue processing requirements and make modification to the current protocol.



Two kinds distributing valve for Regant and wax be treat reagent and wax separately, maximum to prevent the tube blocking under ambient temperature.



Power failure protection function. External UPS to prevent tissue damage due to power failure. When power is restored, the previous protocol is automatically resumed and completed.



Check the seal situation automatically before working, and alarm any problem happens.



Automatic check of seal situation before work begins, abnormalities will be alarmed.



Tissue is placed in retrot bath, free from air contamination and drying can be conducted in a controlled environment.



Specification of AVTP2500 Vaccum Tissue Processor

Surroundings requirements



Working temperature

‘+10℃-35℃

Working humidity

<80%,defrosting

Working pressure

(86~106) KPa

Power supply

220 V AC/110VAC

Frequency

50/60 Hz

Power:

<1000 VA

Fuse:

main power 3A, heating power5A

Safe classify

Classify I-type B

Dimensions

L:650mm, W:690mm, H:1285mm

Weight(net)

approx190kg

Number of paraffin bath

3pcs

Capacity

3.5L

Working temperature

55-70℃

Temperature accuracy

±1℃

Melting time

10h

Number of Retort bath

1pc

Capacity:

max 300cassettes(3basket)

Reagent volume

4.5L

Temperature(paraffin)

55-70℃

Temperature(processing reagents)

55℃

Temperature accuracy

±1℃

Negative pressure max

700mbar

Positive pressure max

350mbar

Waste reagent bottles

1pc

Maximum bottle volume

5L

Reagent bottles

9pcs

Maximum bottle volume

5L

Cleaning bottles

4pcs

Maximum bottle volume

5L

Waste wax box

1pc

Maximum bottle volume

4.5L

Color LCD touch screen

10inches
