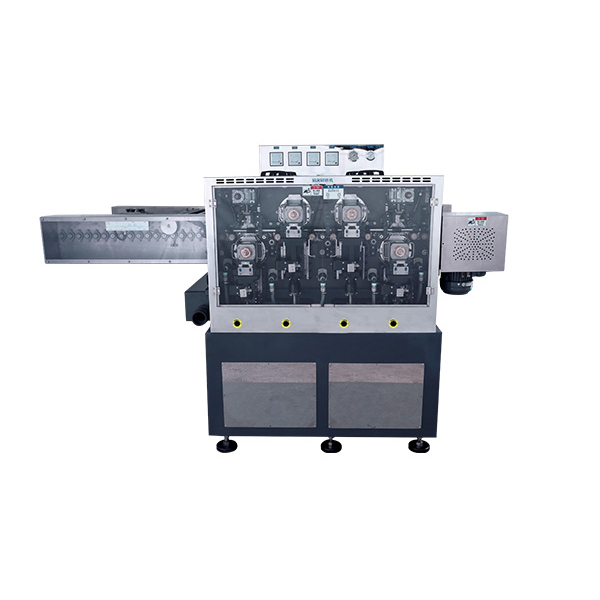

CJM Ultra Precision Scrubbing Machine
Name
TSP
CJM2/4-75 S/Z
CJM2/4-85 S/Z
Appearance Size
L1876mm*W1640mm*H1600士25mm
L2437mm*W1705mm*H1600士25mm
L1876mm*W1705mm*H1600士25mm
L2437mm*W1640mm*H1600士25mm
Max
CJM214-75S/Z: 680mm*680mm
CJM2/4-855/Z:762mm*762mm
Min
220mm* 220mm
Substrate Thickness
0.2~ 3.2mm /0.5~ 10.0mm
Production Speed
1.5~3.0M/Min adjustable speed range 1.0~5.0 M/Min
Total weight of the machine
About 3.0T(4-axis)
Applicable Process
Resin Plug Hole Grinding, Deburring, Removing Copper Particles, Dry Film Pre-treatment
Characteristics of CJM Ultra Precision Scrubbing Machine
1. It adopts HT235 body 40T wall panel and ultra thick A3 frame, with high strength, good shock absorption and stability;
2. The body wall panels and accessories are coated with Teflon, with high hardness, rust prevention, and anti-corrosion;
3. Fully automatic pressure regulation and automatic detection of plate thickness function;
4. Automatic abrasion test and automatic brushing function:
5. Automatic tracking of a certain board position, automatic control, stable grinding pressure:
6. Quick brush changing design, reducing labor intensity, improving efficiency, with a brush changing time of 3-5 minutes per brush.
The Automatic PCB Cleaning Machine is essential for high-volume and high-quality electronics manufacturing. Its ability to clean PCBs thoroughly and consistently makes it a valuable asset for ensuring product reliability, especially in critical applications such as automotive, medical, and aerospace electronics.
