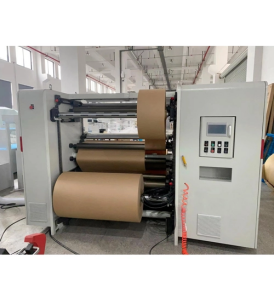

FQA NON-WOVEN ROLL SLITTING MACHINE

FQA slitting machine is a high speed film and paper slitter rewinder machine. This slitting machine adopts Servo motor control and automatic taper tension, central surface rewinding. This slitting machine can slit and rewind minimum 30mm width paper/Non-woven rolls. FQA Slitting Machine can slit many kinds of jumbo roll materials rolls to small rolls, such as adhesive stickers,PVL,PET,Release paper,Non-woven,BOPP. It has the functions of automatic counting meter, automatic alarm, etc. Adopting A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

CHARACTERISTICS OF FQA NON-WOVEN ROLL SLITTING MACHINE

Characteristics of FQA Non-woven Roll Slitting Machine

Adjustable Settings: The machine allows for adjustments in the cutting width, allowing for customization based on the specific requirements of each project.

Safety Features: The machine is designed with safety features to protect the operator, including emergency stop buttons and safety guards.

Low Maintenance: The FQA Non-woven Roll Slitting Machine is designed for low maintenance, reducing downtime and increasing productivity.

User-Friendly Interface: The machine comes with a user-friendly interface, making it easy to operate and control the cutting process.

SPECIFICATION OF FQA NON-WOVEN ROLL SLITTING MACHINE

FQA-1300FQA-1600FQA-1800

Model

FQA-1300

Max.Width of unwinding roll

1300 mm

Max. Diameter of unwinding roll

φ1400 mm

speed

≤350/min

Precision

±0.2 mm

Total Power

24kw

Weight

4000kg

Dimension(L*W*H)

3300x3150x1930mm
