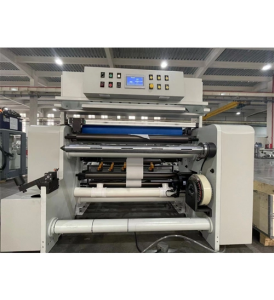

FQFJ-1300 PAPER SLITTER REWINDER MACHINE

Gaobao FQFJ paper rewinder machine is suitable for slitting and rewinding various super large rolls, such as 20g/m -400g/m kraft white cardboard, laminated paper, silicone paper, aluminum foil, tin foil, PVC film, non-woven materials, and other rolls material. Please do not hesitate to contact the Gaobao paper slitting machine supplier for more information on the paper rewinder machine’s price and cost.

FEATURES OF GAOBAO FQFJ-1300 PAPER SLITTER REWINDER MACHINE

1. The paper rewinder machine adopts three servo motor control, automatic taper tension, and center rewinding method.

2. The main  paper rewinder machine adopts variable frequency speed regulation to maintain balanced operation during acceleration.

3. Automatic meter counting, alarm and other functions.

4. The winding adopts single air-expanding shaft structure and chain.

5. Automatic unloading and easy operation.

6. The unwinding adopts ultrasonic/CCD deviation correction system, so that irregular materials can be cut normally.

7. The paper rewinder machine adopts the circular knife/razor blade longitudinal cutting method, and the high-pressure fan waste edge automatic removal device.

8. Air-expanded shaft automatic loading method/hydraulic shaftless automatic unwinding device.

SPECIFICATIONS OF GAOBAO FQFJ-1300 PAPER SLITTER REWINDER MACHINE

Technical Parameter

Technical parameter

Max width mother roll

1300mm

Min width finished roll

50mm

Max diameter mother roll

1600mm

Max diameter finished roll

1600mm

Max mother roll weight

1500KG

Speed of slitting

≤300m/min

Slitting capability

40-550gsm

Rewinding way

Central

Precision

±0.2mm

Speed regulation control

Inverter

Power input

380V,50HZ,3PH

Dimension

4150*2200*1500

Total weight

6200KG

APPLICATIONS OF GAOBAO FQFJ-1300 PAPER SLITTER REWINDER MACHINE

Gaobao FQFJ paper rewinder machine is suitable for slitting and rewinding various super large rolls, such as 20g/m -400g/m kraft white cardboard, laminated paper, silicone paper, aluminum foil,…
