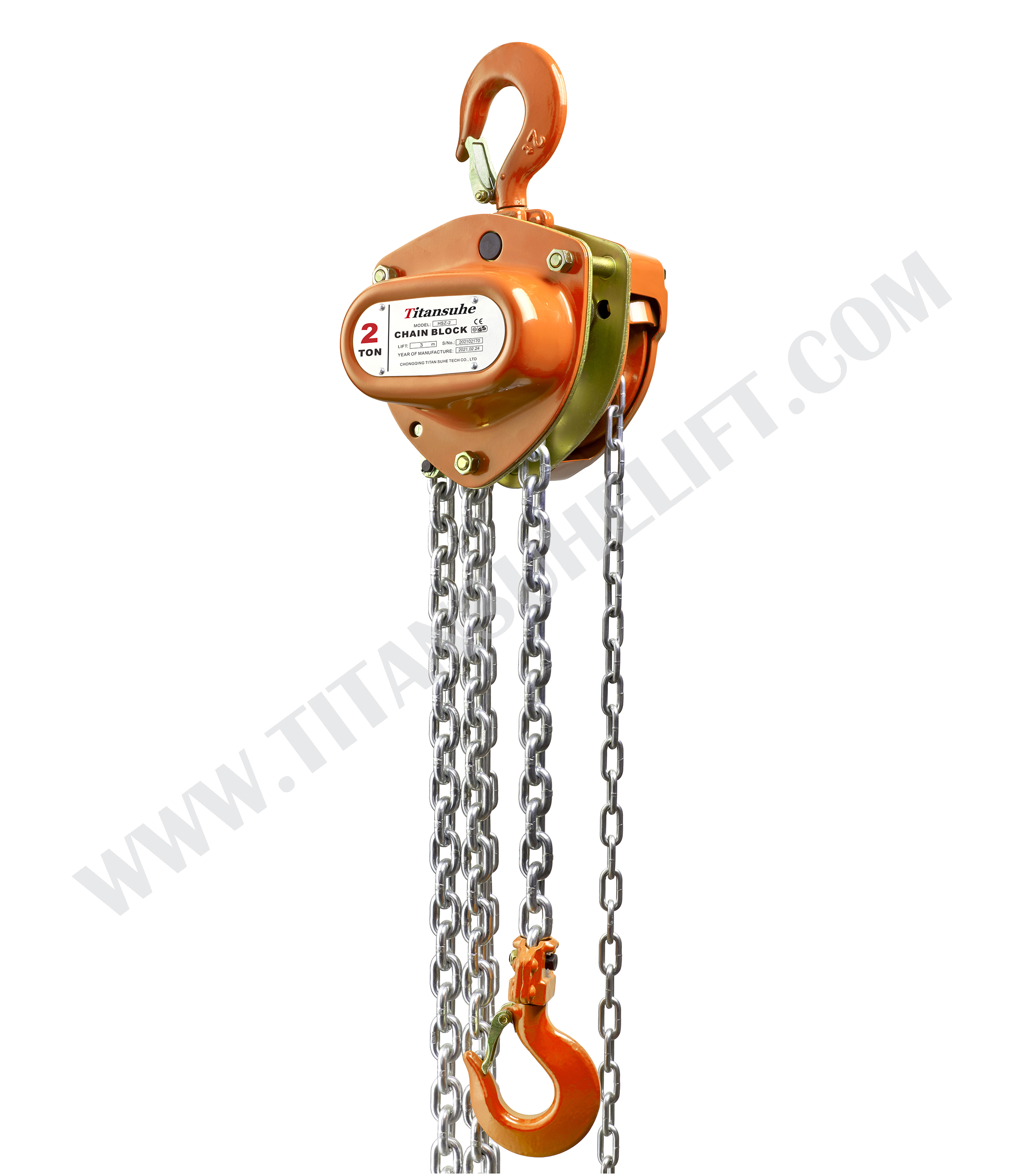

Hand Chain Blocks

Hand chain block, in another name manual chain block, structured with gears, chain, two hooks, and other steel parts, is the most economic tool for labor-saving during your lifting work. It is also one of the most using hand tools. Different from the traditional chain block for lifting purposes only, TITANSUHE’s hand chain blocks are specially designed for many applications. It can work either as a hoist to lift and downloads or be a part of a lashing system to fasten and security the loads during cargo movement or transport, or as a supporting device to hold the loads in building construction or auto repair, or as a rescue device when your car or truck drives off-road. We provide both triangle and round shape hand chain blocks with very good quality and competitive prices.



How To Use A Hand Chain Block

Step 1: Weigh or estimate the weights of the object that is to be moved and choose a rated chain hoist.Step 2: Attach your chain hoist to a support system. The support can be a movable gantry crane, a fixed bracket, or a monorail track.Step 3: Visual check the chain hoist to see if there is any damage or defect that may reduce the chain hoist safety.Step 4: Operate the chain hoist under no load to check if it can work properly.Step 5: Adjust the lifting chain to the appropriate length and attach the loads with the bottom hook.Step 6: Continue pulling the hand chain on the front side of the chain hoist to lift the load. Do not pull the hand chain at angles that may wear the chain and hoist cover.Step 7: Afterload reach desired location, change hand chain pulling direction to the other side to release the load. When the lifting chain gets loose, detach the loads from the hoist bottom hook.



Assurance Of Hand Chain BlockEach piece is proof tested with 1.5 times rated working load and gets its own certificate;All the chain blocks have minimum 4 times rated load breaking strength;Each model chain block has been typing tested and reaches 1500 life cycles as a minimum;For incoming material, we do Chemical Composition Analysis, dimensional check, strength check, and visual check;For key load-bearing parts, we check microstructure, strength, hardness, and elongation;For surface-treated parts, we do a salt spray test to check rust resistance.
