S Type Load Cell

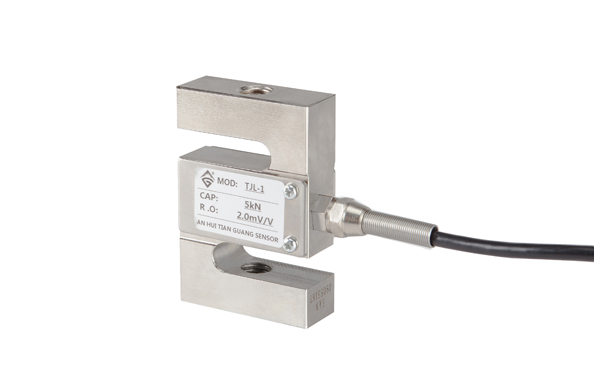

The TJL-1 series load cells are S-type tension load cells. This sensor adopts a classic S-type structure with high accuracy; the two ends are threaded, which is convenient for installation and can be used in tension and compression. Suitable for batching scales, packaging scales and various mechanical testing equipment.
MAKE FORCE SENSORS SAFER AND SMARTER
Widely used in various occasions requiring force measurement and process monitoring.
TJL-1 S Type Load Cell
High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
Specifications of TJL-1 S Type Load Cell
Technical Parameter
Rated Load
0.05~200 kN
Comprehensive Precision
0.02~0.05% FS
Sensitivity
2.0 mV/V
Creep
±0.02% FS/30min
Zero Output
±1% FS
Temperature Effect On Zero
±0.02% FS/10℃
Temperature Effect On Output
±0.02% FS/10℃
Operating Temperature Range
-20~+65 ℃
Input Resistance
380±10 Ω
Output Resistance
350± 3 Ω
Insulation Resistance
＞5000 MΩ
Safe Load Limit
150% FS
Bridge Voltage
Reference 10V DC
Material
Alloy Steel or Stainless Steel
Load Cell Mode Of Connection
Input+: Red
Input-: Black
Output+: Green
Output-: White
