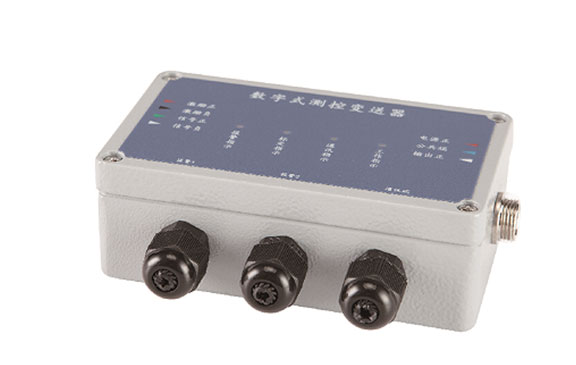

TB3S Weighing Transmitter

1. Precision die-casting aluminum shell, surface spraying treatment.

2. Suitable for occasions with high precision and poor environment.

3. Sampling frequency: 10Hz.

4. With RS232 or RS485 communication function.

5. Output of two relays (both on and off).

6. Acoustic alarm and light prompt using buzzer and LED.

7. Adopt anti-interference power supply design technology.

8. Voltage analog output with the function of short circuit protection.

9. Wiring terminal block and aviation socket, housing with mounting holes.

10. Use two buttons for output adjustment, no potentiometer and other analog adjusting parts.

11. Optional software for calibration and alarm value setting.Specifications of TB3S Weighing Transmitter

Technical Parameter

Rated Input

0~100 mV

Rated Output

V1: 0~5 V

V2: 0~10 V

V5: 1~5 V

A1: 4~20 mA

A2: 0~20 mA

A3: 4~12~20 mA

S1: RS232

S2: RS485

Precision

≤±0.05% FS

Supply Voltage

10(12)~36V DC

Operating Temperature Range

-20~70 ℃

Protection Level

IP65

Size

110*64*37 mm
