Defense Barriers
Defense Barriers | Welded Mesh Barriers with Geotextile LinerWe supply durable welded mesh defense barriers fitted with 250–350g/m² geotextile liners. Standard wire gauges are 4.0mm, 4.5mm and 5.0mm, paired with various mesh sizes. Available in multiple cell combinations and anti-rust treatments. Simply fill with sand or gravel on site, ideal for emergency flood defence, military protection and temporary site enclosures.

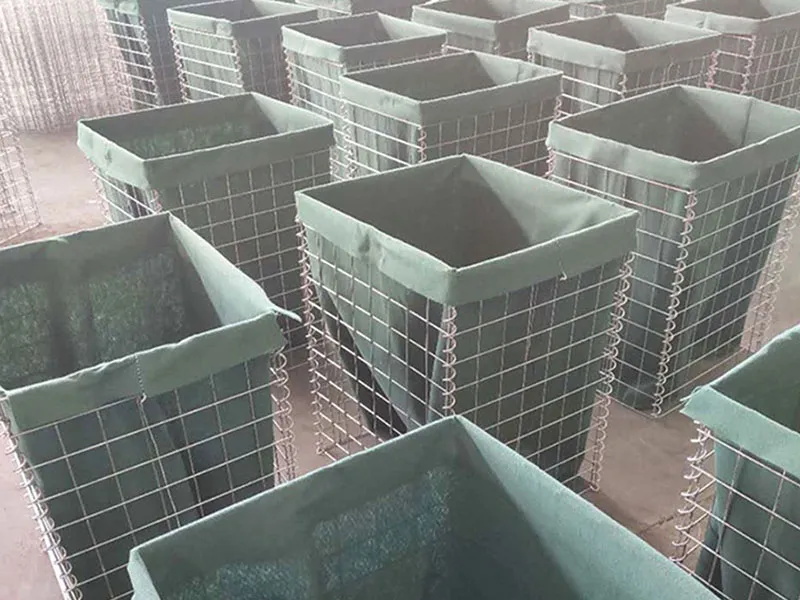

Our defense barriers are foldable welded mesh units equipped with heavy-duty non-woven geotextile liners. On-site filling with sand, soil, gravel or crushed stone creates sturdy protective walls. These products are widely used for military perimeters, temporary checkpoints, flood control and site security.
All units come folded for easy transportation and unfold quickly for installation. The rigid welded mesh maintains shape steadily, while the integrated geotextile liner holds fill materials in place. We adopt hot-dip galvanized wire and Galfan wire as standard materials, paired with UV-stabilized geotextile fabric. You can choose single-cell units or pre-connected multi-cell assemblies.
Specifications
Main Structure: Welded steel mesh frame with integrated non-woven geotextile liner
Wire Material: Hot-dip galvanized steel wire or Galfan-coated steel wire. Galfan coating is recommended for long-term outdoor use.
Wire Diameter: 4.0mm, 4.5mm, 5.0mm
Mesh Aperture: 50mm×50mm, 75mm×75mm, 76.2mm×76.2mm
Geotextile Liner: Non-woven polypropylene fabric, available in beige, sand, green, grey and black
Fabric Weight: 250g/m² to 350g/m², selected according to project demands
Standard Cell Size: 0.61m×0.61m, 1.0m×1.0m, 1.37m×1.06m, 2.21m×2.13m; custom sizes are acceptable
Unit Configuration: Single cell or connected units (3, 4, 5, 9, 10 cells)
Connection Fittings: Spiral wire, hinge pins, spring clips and joining pins
Surface Treatment: Galvanized or Galfan coating. PVC coating is available upon special request; galvanized and Galfan remain the most popular options.
Fill Material: Sand, soil, gravel, crushed stone or local aggregates. Do not use sharp oversized stones, which may damage the liner.
Packing: Compressed folded units are loaded on pallets. Geotextile liners are pre-attached to mesh panels.
Installation Tips: Follow project drawings regarding fill height, wall layout, stacking methods and foundation conditions. Mechanical filling is recommended for large-scale barriers.
