Electric Galvanized Wire
Electro Galvanized Wire Sizes – BWG6 to BWG22 for Different ApplicationsElectro galvanized wire is available in a range of gauges to suit different applications. Thinner wire from BWG20 to BWG22 (approx. 0.89 mm to 0.71 mm) is used for flower tying, craft work, small packaging, and light binding. It is easy to bend by hand and has a clean bright surface. Medium wire from BWG16 to BWG18 (approx. 1.65 mm to 1.24 mm) is a common range for construction binding, mesh weaving, packaging ties, and workshop fastening.

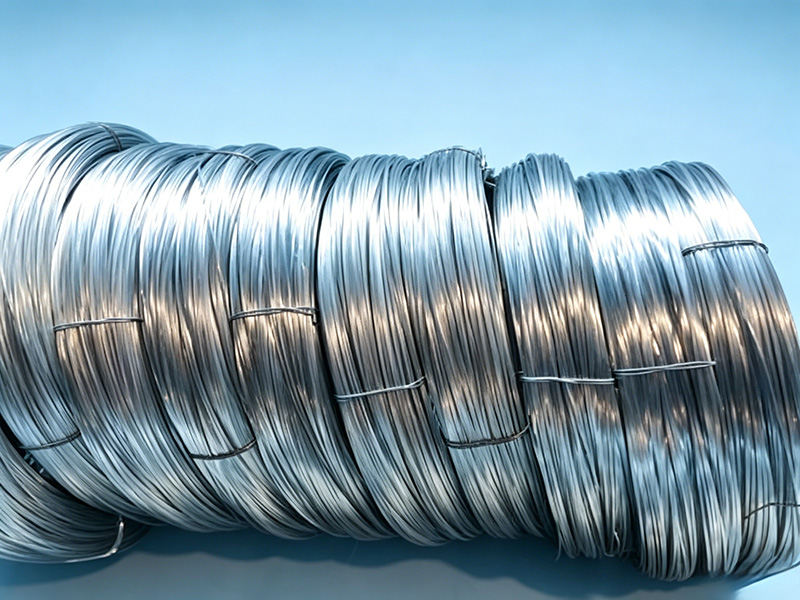

Electro Galvanized Wire is made from low carbon steel wire by drawing and electro galvanizing. It is also called cold galvanized wire or electro galvanized iron wire. The surface is bright and smooth, with a light zinc coating for general rust resistance. It is commonly used for binding, flower tying, wire mesh weaving, fencing accessories, craft work, brush wire, and further processing. Regular sizes are usually from BWG6 to BWG22. Other gauges can be checked according to order. The wire can be supplied in coils, spools, bobbins, straight cut wire, or U type wire.
Specifications
Product Name: Electro Galvanized Wire, electro galvanized iron wire, cold galvanized wire
Material: Low carbon steel wire
Processing: Wire drawing, electro galvanizing, coiling, and packing
Surface: Bright electro galvanized zinc coating
Common Gauge Range: BWG6 to BWG22
Common Diameter Range: Approx. 5.16 mm to 0.71 mm
Frequently Ordered Sizes: BWG8 to BWG16 for binding, fencing accessories, construction, and mesh use
Diameter Reference: BWG22 approx. 0.71 mm; BWG20 approx. 0.89 mm; BWG18 approx. 1.24 mm; BWG16 approx. 1.65 mm; BWG14 approx. 2.10 mm; BWG12 approx. 2.77 mm; BWG10 approx. 3.40 mm; BWG8 approx. 4.19 mm; BWG6 approx. 5.16 mm
Zinc Coating: Commonly 10-25 g/m², confirmed by order
Tensile Strength: Commonly 40-85 kg/mm², depending on wire diameter and temper
Supply Form: Coil wire, spool wire, bobbin wire, straight cut wire, or U type wire
Coil Weight: 10 kg to 800 kg per coil is common; larger coils can be checked by order
Packing: Plastic film inside, hessian cloth or woven bag outside, carton, pallet, or customer packing
Use Note: Electro galvanized wire has a lighter zinc coating than hot dipped galvanized wire. For long outdoor exposure or wet conditions, hot dipped galvanized wire is usually more suitable.
