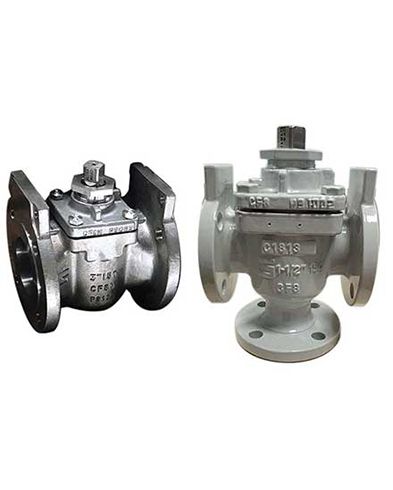

GEKO Plug Valve

Plug valve is a quarter-turn rotational motion valve. The advantages of Geko plug valves are: Various ports can be designed, quick turn on-off operation, easy to maintain, minimal resistance to flow, anti-static and fireproof design.



Specification Of Plug Valves



Pressure Rating

CLASS 150~CLASS600 (PN10~PN110)

Nominal Diameter

1/2 “~24” (DN15~DN600)

Temperature Range

-46℃~300℃

Body Material

Carbon Steel, Stainless Steel, Duplex, Hastelloy, Inconel, Monel, Alloy20, Incoloy, etc.

Seat Material

PTFE, RPTFE, PEEK, etc.

Operation Mode

Manual, Pneumatic, Electric, Hydraulic, etc.
