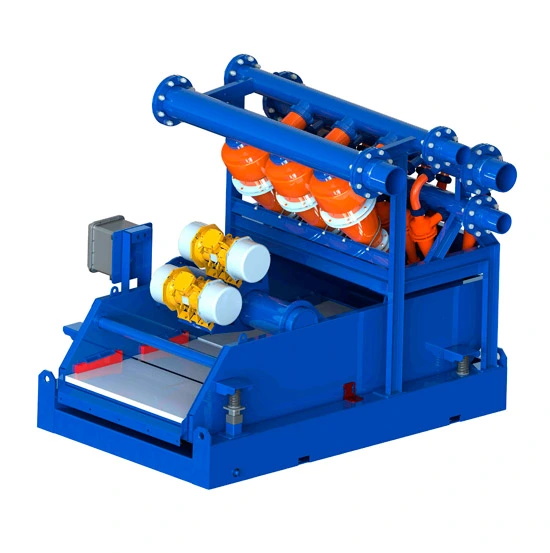

Mud Cleaner

Mud cleaner is a combination of desanders and/or desilters mounted over a shaker with a fine mesh screen. A mud is fed to the inlet of the hydrocyclone (desander and/or desilter) to separate particles and the underflow passes to the fine screen mesh where in particles larger than barite are discarded and thrown away. In most drilling operations, a mud cleaner is installed in its mud systems. It is usually located in a mud tank in the same location as with the desilters.

BZQJ Mud Cleaner Features

Hign efficiency&compact design: integrated desander, desilter, shaker, efficient for retaining barite and separation of LGS.

Polyurethane hydroclones, good corrosion and wear resistance.

Split type hadrocyclones, parts can be replaced separately when damaged.

The hydrocyclone inlet can be equipped with a stop valve, which is convenient for flexible adjustment and maintenance

Clamp type manifold for pipe and hydrocyclones, reliable connection and easy maintenance

Shaker deck angel adjustable -1°~+5° while drilling and bottom frame used stainless steel for long service life.

Italy Oli or USA Martin vibration motor. adjustable G force up to 7.5G.

Pretensioned screen and wedge compaction for easy replacement.

Heavy-duty coating 3 layers.

BZQJ Mud Cleaner Benefits

Flexible configuration options according to user conditions.

Efficient separation of unwanted solids reduces equipment damage and maintenance.

Reduce drilling fluid and operating costs.

Weighted and unweighted mud can be handled.

BZQJ Mud Cleaner Specifications

Model

BZQJ583-1S8N

BZQJ583-2S12N

BZQJ583-3S16N

BZQJ584-2S12N

BZQJ584-3S16N

Capacity (m³/h)

120 (440gpm)

240 (880gpm)

360 (1320gpm)

280 (1027gpm)

390 (1430gpm)

Desander Cone Size

10inch

Desander Qty(pcs)

Desilter Cone Size

4inch

Desilter Qty(pcs)

Working Pressure

0.25 ~ 0.4MPa

Particle Size

15-75μm

Underflow Shaker

Model

BZS583

BZS584

Vibration Mode

Linear Motion

Vibrator Motor

2×2.2kW

G Force

≤7.5G Adjustable

Deck Angle

-1°~+5°

Screen Area

2.0㎡

2.7㎡

Screen Panel

EX Standard

ExdII Bt4 / IECEX / ATEX

Weight

2010kg

2285kg

2380kg

2485kg

2660kg

Dimension L*W*H (mm)

2410x1978x2147

3004x1978x2147
