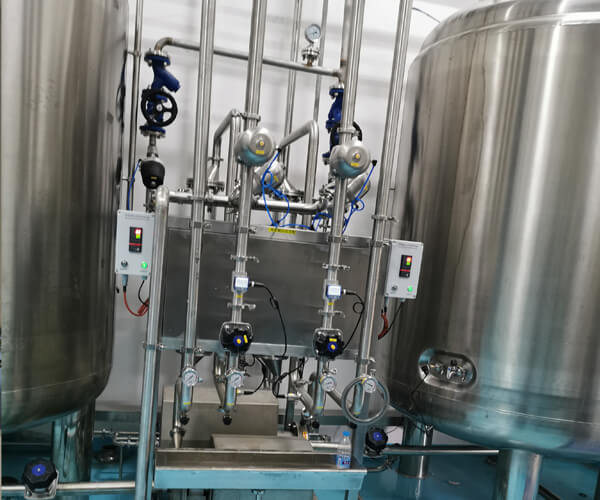

WFI TANK/SKID

The distribution system is the core unit of the whole pharmaceutical water system, and its main function is to ensure that the pressure, flow and temperature delivered to the process pipeline meet the process production requirements. The system uses online monitoring instruments such as flow, pressure, temperature, conductivity and TOC to conduct safety performance, real-time monitoring and trend analysis of water quality, and effectively control the load of microorganisms in water through periodic disinfection or sterilization. In addition, sampling valves shall be installed on the water supply starting point, water pipeline and end pipeline of the entire distribution system for water quality sampling. The whole system is mainly composed of inverter, exchanger, sampling valve, diaphragm valve, sanitary pipe fittings, online monitoring instrument and other supporting control systems.

Design Features of WFI Tank/Skid

◆Integrated design, simple operation and convenient management.

◆Modular structure, saving space.

◆ Ensure that there is turbulence in the circulation pipeline loop,

and the flow rate is>1m/s.

◆Frequency conversion control, the circulation pipeline circuit maintains positive pressure.

◆Online monitoring of temperature, pressure, flow and other technical indicators, alarm and discharge of unqualified water.

◆Operation, disinfection and online monitoring functions are integrated

◆ Equipment manufacturing meets GMP verification requirements.

◆Provide 4Q electronic verification documents.

HOW DOES PW WFI TANK/SKID WORKS？

Water for injection storage and distribution systems should be periodically sterilized at the temperature of ≥ 121 ° C. The WFI storage and distribution systems may be sterilized using superheated water or pure steam.
