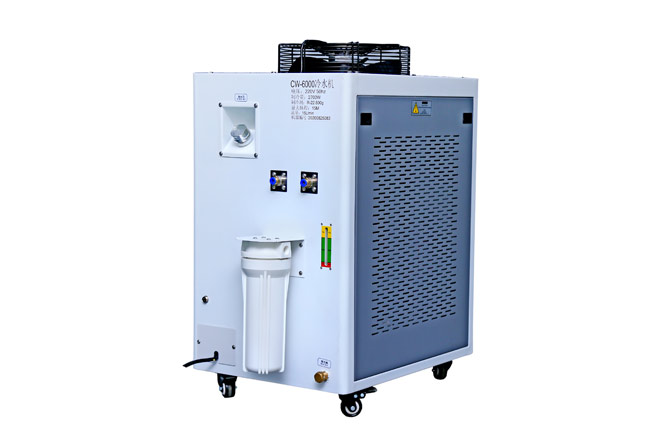

CW6000 Water Chiller For 22KW CNC Spindle
CW6000 Water Chiller is used to cool down the CNC spindle below 22KW. The cooling capacity of CW6000 Water Chiller is 3000W, which can meet the cooling requirements of most engraving machine spindles. The vertical movable design is convenient to use and easy to transfer. Laboratory-grade high-precision quality, cooling accuracy can reach ±0.5℃. With a variety of alarm protection functions, so that the continuous operation of CNC equipment without risk.
Advantage Of CW6000 Water Chiller For 22KW CNC Spindle
· Optional durable high-efficiency compressors of international famous brands, such as Panasonic.
· Condenser, evaporator and world-renowned brand components made of high-quality and high-performance copper pipes.
· Small size, low noise, large energy, long life, easy operation.
· Powerful protection devices: compressor delay start protector, overload protector, temperature control switch, compressor overheat protection, etc.
Specification Of CW6000 Water Chiller For 22KW CNC Spindle
Model
CW-6000AH
CW-6000BH
CW-6000DH
CW-6000AI
CW-6000BI
CW-6000DI
CW-6000AN
CW-6000BN
CW-6000DN
Voltage
220V
220V
110V
220V
220V
110V
220V
220V
110V
Frequency
50Hz
60Hz
60Hz
50Hz
60Hz
60Hz
50Hz
60Hz
60Hz
Current
1~4.5A
1~10A
1.5~5.5A
1.5~10.5A
2~6A
2~11A
Compressor power
0.965KW
0.895KW
1.12KW
0.965KW
0.895KW
1.12KW
0.965KW
0.895KW
1.12KW
1.28HP
1.22HP
1.52HP
1.28HP
1.22HP
1.52HP
1.28HP
1.22HP
1.52HP
Refrigeration capacity
10286Btu/h
9502Btu/h
10724Btu/h
10286btuh
9502Btu/h
10724Btu/h
10286btuh
9502Btu/h
10724Btu/h
3.015KW
2.785KW
3.145KW
3.015KW
2.785KW
3.145KW
3.015KW
2.785KW
3.145KW
2592Kcal/h
2395kcal/h
2711Kcal/h
2592kcal/h
2395kcal/h
2711Kcal/h
2592kcal/h
2395Kcal/h
2711Kcal/h
Refrigerant
R-22/R-410a
Refrigerant charge
800g
750g
650g
800g
750g
650g
800g
750g
650g
Precision
±0.3℃
Reducer
Capillary
Protection
Over current protection for compressor, flow alarm, over-temperature alarm
Pump power
0.05KW
0.1KW
0.37~0.75KW
Tank capacity
15L
Inlet and outlet
Rp1/2″
Max. lift
12M
25M
28~53M
Max. flow
13L/min
16L/min
70L/min
N.W
60Kgs
72Kgs
G.W
70Kgs
82 Kgs
Dimension
67 X 47 X 89 cm (L X W X H)
Package dimension
74 X 62 X 109 cm(L X W X H)
Application Of CW6000 Water Chiller For 22KW CNC Spindle
Used to cool down the CNC spindle below 22KW.
More Details Of CW6000 Water Chiller For 22KW CNC Spindle
High-power Fan To Improve Heat Dissipation Efficiency
Smart Operation Panel, More Concise And Easy To Operate
Recessed Inclined Water Injection Port, Convenient For Water Injection And Transportation
Optional Water Purification Equipment To Meet Special Purposes
Equipment Wiring Arrangement Is Reasonable And Safe
