Metal Fiber Pleated Filter Element
Metal Fiber Pleated Filter Element — Precision Filtration for Polymer, Chemical & High-Temperature Applications
Inconsistent fiber sintering creates weak points that collapse under differential pressure. Uneven pleat spacing causes channeling — unfiltered media bypasses the blockage zone entirely. Poor end-cap welding lets particles pass around the element instead of through it.These aren’t failures you catch on a spec sheet. They show up 200 hours into a production run, right when a changeover is the most disruptive thing that can happen.Our metal fiber pleated filter elements are manufactured to hold structural integrity across the full rated service life.
What Is a Metal Fiber Pleated Filter Element?

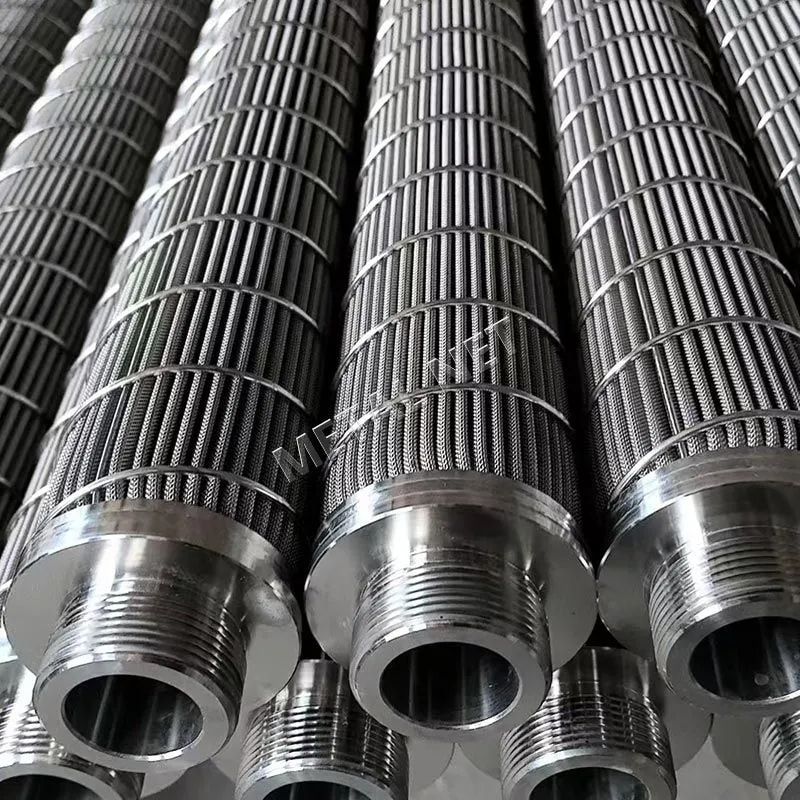

A metal fiber pleated filter element is a cylindrical filtration component constructed from layers of sintered metal fiber media — typically stainless steel — folded into a pleated configuration and sealed between end caps. The pleating increases the available filtration surface area within a fixed housing diameter, which directly reduces pressure drop and extends service intervals compared to flat disc or straight-tube designs.The metal fiber media itself consists of randomly oriented stainless steel fibers sintered together under controlled temperature and pressure, forming a three-dimensional depth filtration matrix. Unlike woven wire mesh, which filters primarily on the surface, sintered metal fiber captures particles throughout the depth of the media — achieving finer absolute ratings at lower differential pressure, with higher dirt-holding capacity before a backwash cycle is needed.This makes metal fiber pleated elements the preferred choice when:
Operating temperatures exceed the limit of polymer cartridges (typically above 80°C)Media is chemically aggressive — solvents, acids, polymer melts, or corrosive gasesThe process requires repeatable absolute filtration rather than nominal ratingsThe filter housing is sized for cartridge formats but the application demands metal media durability
