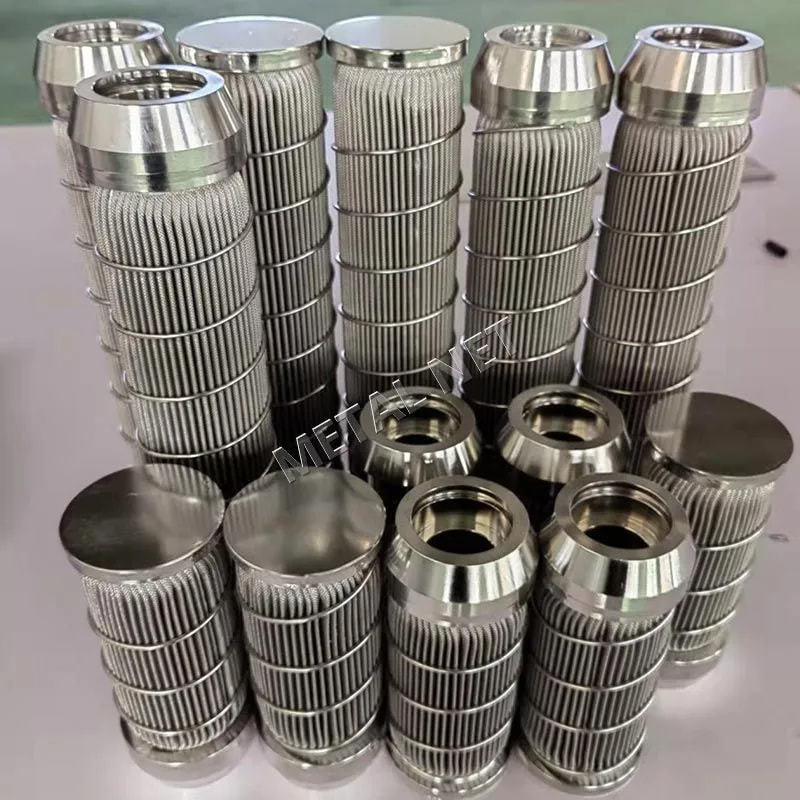

SS Pleated Filter Element
SS Pleated Filter Cartridge – High-Performance Industrial Filtration
Our SS pleated filter cartridges are precision-engineered stainless steel pleated filter elements, using high-quality square-mesh or woven metal screens. Designed for demanding industrial applications, these pleated filter elements deliver reliable performance in melt filtration, oil purification, sand prevention, and chemical processing.
Built for durability, these cartridges withstand high pressure, elevated temperatures, and aggressive chemical environments while maintaining stable filtration precision. Their excellent air and fluid permeability allows high flow rates per unit area, making them ideal for petroleum, chemical, synthetic fiber, and textile industries. Fully cleanable, regenerable, and reusable, these filter cartridges offer long service life and cost efficiency for industrial operations.
Technical Specifications
Technical Specifications
Working Pressure: ≤28.7 MPa
Working Temperature: ≤280°C
Medium Viscosity: ≤230 Pa·S
Metal Mesh Filter Elements: 20 mesh to 400 mesh
Metal Woven Filter Elements: 3 μm to 100 μm
Material: Stainless steel square-mesh sheets (SS304, SS316, SS316L)
Structure: SS wire net or sintered fiber, inner support, outer protective layer, both end cap or connection part
Size: OD: 10″, 20″, 60 mm, 65 mm; Length: 10″, 20″; special sizes available on request
Connection Types: 222, 220, 226, 215, M36, M28, M24, M22, M20 standard interfaces, threaded interfaces, custom interfaces, rod connections, flange connections, quick-connect interfaces
