Aluminium Alloy Formwork System
The aluminium alloy formwork system is a state-of-the-art building solution designed to form cast-in-place concrete structures with exceptional precision and efficiency. As one of the leading innovations in modern construction, our aluminium alloy formwork system is engineered from high-quality aluminium alloy.
A. Introduction
Work-sun aluminium alloy formwork system is a construction system for forming cast in place concrete structure of a Building. Aluminium formwork is made in aluminum alloy profile what is the main material and is made into formwork through machining, welding, and other processes, which is suitable for concrete engineering.
Aluminium formwork system can be assembled flexibly according to different structural sizes. The design and application of aluminum alloy formwork is an innovation in formwork technology.
Work-sun formwork system increases efficiency, and also produces an extraordinarily strong structure with excellent concrete finish.
B. Advantage
a. Flexible and efficient assembly
More than 85% of standard formwork and each formwork has an installation code.
Aluminum alloy formwork assembly method is simple and easy to operate.
Due to the formwork is light weight, workers can easily carry and assemble it.
b. Good quality of concrete forming
High strength and precision, with few joints on the aluminum alloy formwork surface
Customized production of aluminum alloy formwork with higher dimensional accuracy
Complete the entire structure with one-time pouring
c. Environment friendly and economical
Great recyclable value, over 35% higher than steel, beneficial for environmental development
Reduce construction waste on construction sites by nearly 30%
Longer service life, can be reused up to 200-300 times, can reduce costs by about 25%
Due to high construction efficiency, it can reduce labor costs by about 20%
Reduce expenses for renting equipment such as cranes, wall plastering, and decoration costs
d. More safer construction environment
After assembly, it forms a whole with high stability
No need to work with a crane, greatly reducing the risk of falling objects from high altitude
Havfigh bearing capacity, and is not easily deformed
C. Specifications&Features
Aluminum Alloy Features
Shear-strength（Fva）
115N/
Poisson’s ratio（Va）
0.3
Yield strength（Fa）
200N/
Elasticity modulus（Ea）
70KN/

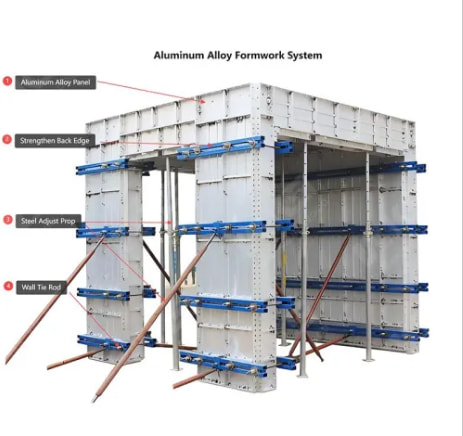

Composition
Inner&Outer wall panel and corner panel
Beam bottom&side panel and corner panel
Slab panel&prop head and corner panel
Staircase panel
Alloy Material
6061-T6
Material Type
Complete extrusion
Main Welding Type
Friction Stir Welding
Thickness of Panel
4mm
Thickness of Edge Frame
8mm
Height of Edge Frame
65mm or customization
Standard of Wall Panel Width
50mm-600mm
Standard of Wall Panel Height
2400mm-2600mm or customization
Standard of Slab Panel Size
400mm-600mm*1200mm or customization
Weight of Panel
24KG/㎡
Standard Prop Adjustable Range
1800mm-3300mm or customization
