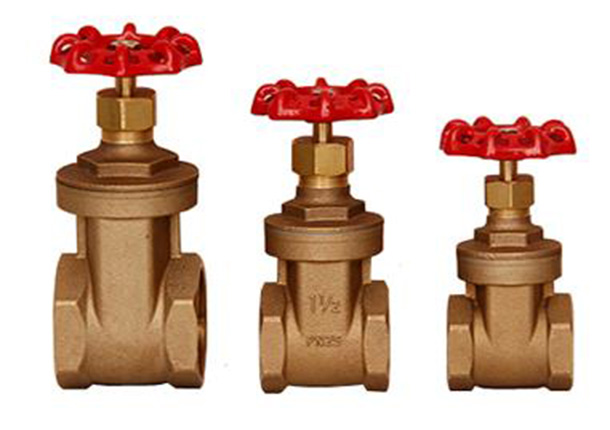

Bronze Gate Valve



Bronze gate valve for sale uses bronze material, which has excellent wear resistance and corrosion resistance, good casting performance and airtightness. The bronze steam rated gate valve is widely used in higher load parts, such as bearings, pump bodies, marine spirals, petrochemical industry, shipbuilding industry, etc. According to the sealing surface configuration, the crane bronze gate valve can be divided into a wedge gate and a parallel gate. According to the thread position of the valve stem, it can be divided into an open stem gate valve and a dark stem gate valve. The open-stem bronze American standard gate bronze valve, the concealed bronze American standard gate valve, the opening and closing part of the American standard bronze gate valve is the gate. The movement direction of the gate is perpendicular to the direction of the fluid, so the American standard union bonnet gate valve can only be fully opened or fully closed. I can’t adjust and throttle.



Bronze Gate Valve Details:

Low flow resistance.

Less effort when opening and closing.

The medium can flow in any direction on both sides, easy to install.

Simple shape, short structure length, wide application range.

Compact structure, good valve rigidity, smooth passage, small flow resistance, long service life.



Bronze Gate Valve Specifications



CB-6530 Gate Valve



Material

Pressure

Operating temperature

P/N

SIZE

DH

L

H

Bronze

400psi

-20℃≤T≤120℃

22031

1/2″

12.7

45

72.4

22032

3/4″

19.2

50

84.9

22033

1″

25

57

99.32

22034

11/4″

32

64

120.7

22035

11/2″

38.1

66

138

22036

2″

50

73

160.5



Bronze Gate Valve FAQs

Bronze Gate Valve FAQsFAQS

Bronze Gate Valve FAQsWhat is the bronze gate valve application?

A gate valve is a kind of copper gate valve that opens and closes. The gate moves in a perpendicular direction to the fluid flow. The gate valves for sale can only be fully opened and fully closed. The gate valves are classified as stiff gate valves or flexible gate valves based on the difference in the gate. Chemical, petroleum, light industrial, hospitals, environmental protection, and other areas all use it.







Bronze Gate Valve FAQsWhat are different types of bronze gate valves?

According to the gate structure, the gate valve types are divided into wedge type and parallel type. There are three types of wedge gates: single gate, double gate and elastic gate. According to the different structure types, the gate valve is divided into flat gate and knife gate valves.







Bronze Gate Valve FAQsWhat is difference between gate valve and globe valve?

Steam rises when the shut-off valve is opened or closed. To put it another way, when the handwheel is spun, the handwheel rotates and lifts with the stem. The gate valve turns the handwheel to move the valve stem up and down, while the handwheel’s position remains constant. Compared with bronze globe valve, the gate valve also has only two states: fully open or fully closed, has a big opening and closing stroke, and takes a long time to open and close.
