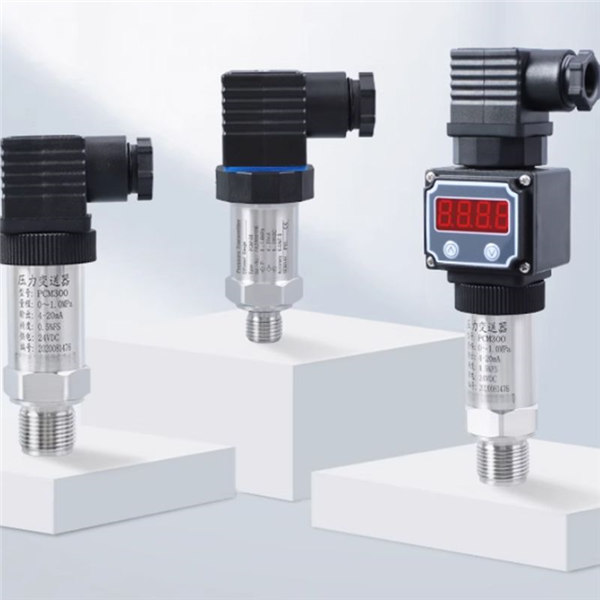

Capsule Type Pressure Transmitter
To convert measured pressure values into standard industrial signals, such as 4-20mA, 0-20mA, 0-5V, 0-10V and so on.The principle of pressure transmitter is that the internal pressure sensor pressure generated weak electrical signal through a series of processing (op amp, A / D conversion) eventually become a standard signal.
Capsule Type Pressure Transmitter Advantage
High precision, small size and light weight;
Extremely high temperature performance, full scale temperature compensation;
Stainless steel laser welding medium isolation;
Digital intelligent chip, reliable circuit and fast response.
Specifications
Parameter
Description
Standard range
-100KPa~0~200MPa
Output
0-10V,4-20mA,1-5V
Protocol
HART ( optional)
Accuracy
± 0.25%/ ±0.5%
Zero error
＜±0.25%FS
Long term stability
＜±0.25%FS/year
Working temp
-40~200℃
Shell material
304SS,316SS
Voltage
12~36V
Explosion
EXdIIBT6
Protection
IP65,IP67
Process connection
Thread or Sanitary Type
