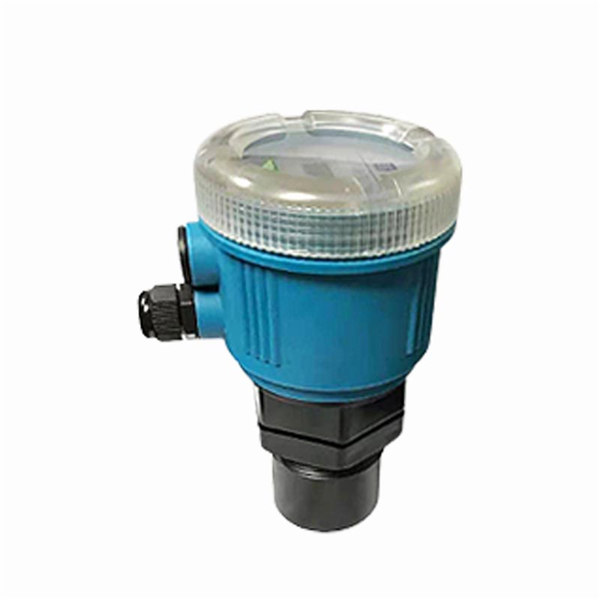

Ultrasonic Level Transmitter
Ultrasonic liquid level meter has perfect functions of liquid level monitoring, data transmission and man-machine communication. Strong anti-jamming performance; The upper and lower limits can be set freely, online output adjustment and on-site indication. A variety of styles are available.
Advantage
Ultrasonic Level Transmitter is a non-contact, highly reliable, cost-effective, easy to install and maintain the level measurement instrument. High-quality transparent protective shell, sealing ring and protection of the electrical interface; observe the data intuitively and clearly, excellent waterproof and dustproof design, effective protection of the internal line. Overall selection of engineering plastics, impact resistance, aging resistance, high temperature and low temperature resistance, long service life; internal coil shock protection, stable and strong sealing. Optional relay output to control the pump start and stop.
Specifications
Parameter
Description
Structure
Split type/ compact type
Measuring range
0.4~20m
Output
2 wire/4-20MA, RS485, HART
Voltage
12V/24V/220V
Display
Local LCD Display
Pressure
-0.2~1bar
Protection Grade
IP68
Accuracy
±0.5%FS
Blind Zone
0.25-0.5m
Ambient Temperature
-15~+50℃
Connection
M66*3 thread
Open a hole with
68mm
We provide level measurement products for different media ( liquid, bulk solid, powder) and different operating conditions. Which with good stability, high accuracy and economy.
