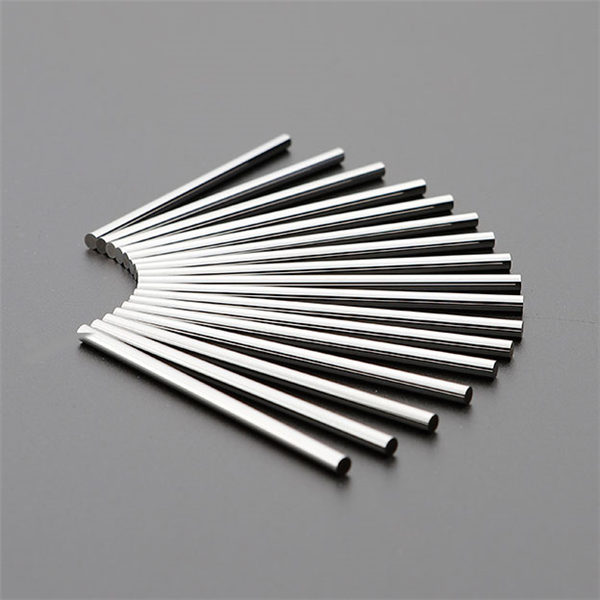

Customized Steel Pin Gauge
In order to meet the various needs of customers, we specially launch the customized service of non-standard size.The length and specification of pin gauge can be processed according to requirements.A customized pin gauge packaging box will be provided for orders under 20pcs.
Characteristics of Steel Pin Gauge:
No rustWear resistancehardness(HV800-1200 or above)
Steel pin gauge properties: no rust, non-magnetic, corrosion-resistant.Through multiple heat treatment process improvements, the hardness reaches above HV800-1200.After ultra-cold treatment at -198℃, the dimensions are very stable.
Specifications
Level-K
Size (mm)
Tolerance (μm)
Roundness (μm)
Length (mm)
Hardness
0.500，0.51……12.99
±0.5μm
0.5μm
50
HRC: 58~62
13.00，13.01…20.99
±0.5μm
0.6μm
50
21.00，21.01……30.00
±0.5μm
0.8μm
50
Level-0
Size (mm)
Tolerance (μm)
Roundness (μm)
Length (mm)
Hardness
0.50，0.50……12.99
±1μm
0.5μm
50
HRC: 58~62
13.00，13.01…20.99
±1μm
0.6μm
50
21.00，21.01……30.00
±1μm
0.8μm
50
