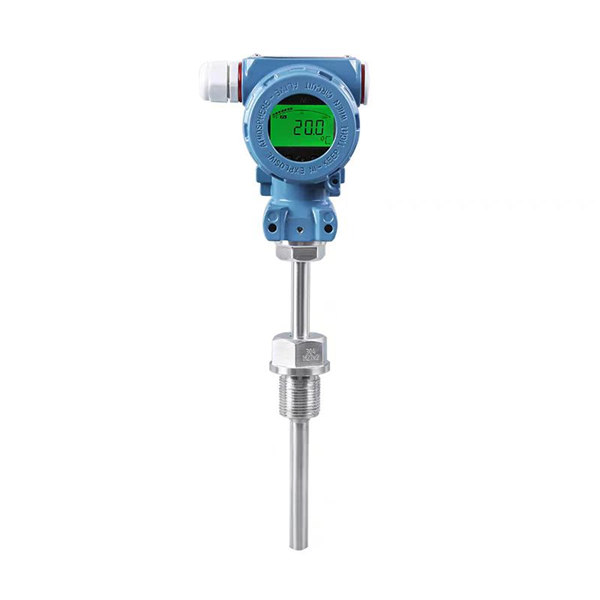

Temperature Transmitter
Temperature transmitter adopts thermonuclear, RTD as temperature measuring element, the output signal from the measuring element to the transmitter module, after the regulator filter, operational amplifier, nonlinear correction, V / I conversion, constant current and reverse protection After the circuit is processed, it is converted into a constant current signal output of 4-20mADC or 0-10mADC, which has a linear relationship with temperature.
Advantage
Long transmission distance, strong anti-interference ability. Cold end, temperature drift, non-linearity automatic compensation.
High measurement accuracy and good long-term stability.
The temperature module adopts epoxy resin casting process inside, which is suitable for use in various harsh and dangerous places.
Integrated design, simple and reasonable structure, can directly replace the ordinary assembly thermocouple, RTD.
Specifications
Parameter
Description
Standard range
(k)0~1200℃,(E)0~800℃，(S)0~1600℃，(B)0~1800℃
Output
4~20mA, 0~5V, 0~10V
Protocol
RS232, RS485, HART
Accuracy
±0.25%，±0.5%
Application
Liquid,gas,steam
Protection pipe material
1Cr18Ni9Ti,ceramics,steel tube
Installation
M12*15,M20*15,M27*2,or other type you need
Load
0~500Ω
Voltage
10~45V
Explosion proof
DIIBT6
Protection
IP65,IP67
Display
Without display/LED/LCD
Temperature transmitter can converts the temperature signal detected by a temperature sensor into a standard electrical signal (such as 4-20mA, 0-10V), and it is widely used in industrial automation and process control.
