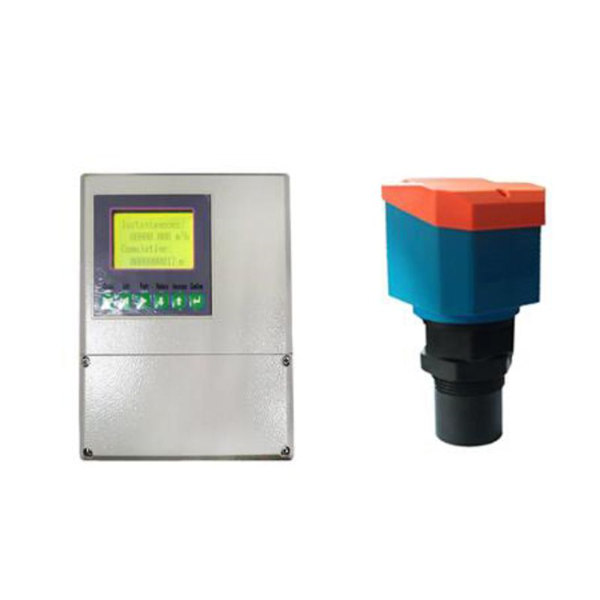

Ultrasonic Open Channel Flow Meter
Mainly used for flow measurement in standard channels and weirs. Non-contact measurement, the product is durable and affordable. Compact type, split type, split waterproof type, various styles available.
Ultrasonic Open Channel Flow Meter Advantages
Built-in multiple algorithms for various standard water channels.
Split waterproof type or compact type, a variety of options, more convenient to use.
Blind area can be manually set to shield the interference signal near the probe.
Transducer built-in temperature sensor, real-time automatic temperature compensation.
Specifications
Parameter
Description
Applicable
Parshall flume, rectangular weir, equal width weir, triangular weir
Voltage
Standard 24V DC/220V AC
Output
4-20mA/RS485/RS232
Wiring
4-wires connection of transducer and transmitter (maximum transmission distance 100m)
Blind zone
0.25-0.45m, the blind zone is inherent
Velocity
10L/s~10m³/s（Determined by the type and specification of the flume）
Protection level
IP68/IP65
Thread size
M66*3
Opening
68mm
Transducer material
High strength engineering nylon
Transmitter material
Cast aluminum
Gallop channel flow meters integrate cutting-edge technology for unparalleled performance. Our focus on non-contact solutions ensures long-term reliability, while the intuitive interface simplifies operations for field engineers. With robust construction and advanced ultrasonic sensors, these meters are built to perform in the toughest environments.
