Floating Seal Installing Tools

Installation tools and suitable installation procedure are highly recommended for series production and maintenance work. Installation process has a significant impact on seal performance, and diameters up to 1105mm installation tools are available for different mechanical face seals.

Before installation, arrange a cleaned seal, o-ring & housing and free from any mechanical damage and dent. Cleaning the seal using lint free wipe and ensure the seal face be thoroughly cleaned and no fine particles of dust should remain on it.

Place the o-ring on the metal seal ring at the bottom of the seal ring ramp and against the bottom of the seal ring ramp and against the retaining lip and then check it is properly sleeved. Make sure the o-rings are straight on the rim and not twist or squeeze.

Engage the lip of the installation tool between the gap of o-ring and seal face inside the circular guide way groove of the tool, and bring the edges of clamp close to each other.

Press the seal ring into the housing like a snap fastener, and press the fixture with even load on the guide plate. Small rings can be manually fixed, however for big rings apply even and gentle pressure around the rim of guide plate using wooden mallet.

Ensure that afterwards the housing face is parallel to the seal face, and o-rings must not undulate in the housing bore or kink and bulge out of the bore. Ensure the clearance between the seal ring housing bores with FUYOTE engineer.

Do not use sharp instruments in floating seal installation. Inappropriate tool cause irreversible damage of metal ring’s sealing face. Because mechanical face seals are high precision product, especially the contact band, tools must be used in installation. We recommend the use of installation tools to ensure a proper installation of o-rings. If improperly installed, twist on o-rings might lead to uneven stress and creep down from the metal ring. Eventually cause early failure.

Keep the floating seal in the original packaging until installation, in case dust will get inside the seal before installation. Fine-finished seal faces of the metal seal rings and the o-rings need to be carefully protected from damage and contamination.

The seal housing which contact the rubber o-rings need to be clean and free from machining debris before installation. This should be done using a lint free wipe. Remove the foreign material from the o-rings, ramps and the lips of both seal rings.

Use alcohol to clean the parts instead of any other oil that leaves oil film or do not evaporates. Only use lint free wipes or cloths, and never use tissue paper or cotton waste.

O-rings cannot be used with blow holes or damages. And also cannot be twisted inside housing.

Do not use sharp tools to locate o-rings and hammer on sealing surface.

Check for sealing edge free from dirt, dust, and hair. Keep the sealing surface clean thoroughly before installation, and never allow sealing surface be dirty, keep it be cleaned well before assembly.

After compete the final assembly of the unit, make sure both seals are in the correct hosing position, due to high impact can scratch or break the seal components. A new set will have to be installed even the wear limit is not yet reached, when the seal set is taken apart in the course of repairs.

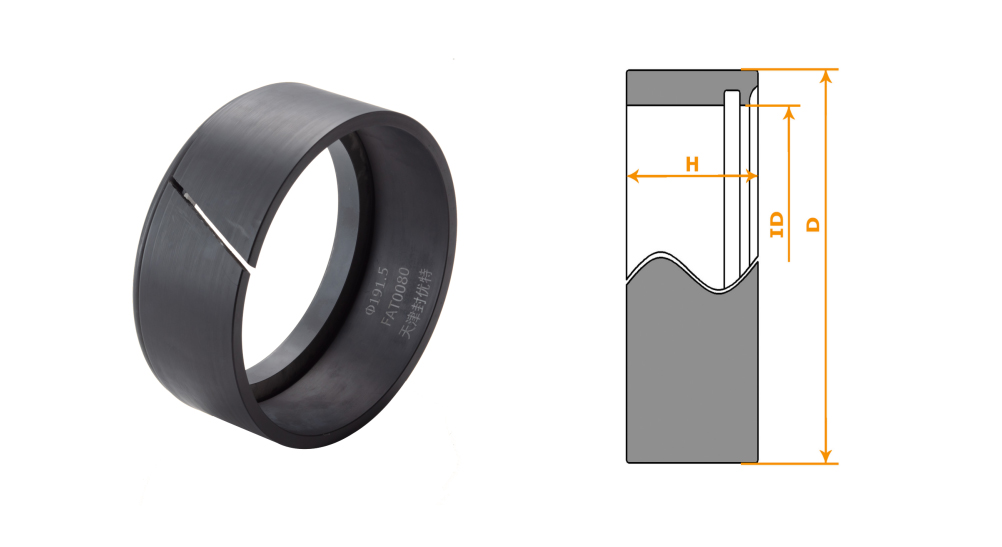

Split tooling coding

Product number

FAT0010

CS9200

FAT0020

CS8250

FAT0030

CS7800

FAT0040

CS3250

FAT0050

CS2202

FAT0060

CS2050

FAT0070

CS1780

FAT0080

CS1630

FAT0090

CS10300

FAT0100

CS8950

FAT0110

CS3660

FAT0120

CS5590

FAT0130

CS6670

FAT0140

CS5050

FAT0150

CS10440

FAT0170

CS3180

FAT0180

CS1780

FAT0190

CS4290

FAT0200

CS1095

FAT0210

CS1501

FAT0230

CS1150

FAT0240

CS1240

FAT0250

CS1542

FAT0260

CS7800

FAT0270

CS2204

FAT0280

CS2980

FAT0290

CS3500

FAT0300

CS6600

FAT0310

CS8300

FAT0320

CS3002

FAT0330

CS3870

FAT0340

CS3000

FAT0350

CS3400

FAT0360

CS3181

FAT0370

CS1300

FAT0380

CS3700

FAT0390

CS1540

FAT0400

CS4700

FAT0410

CS2520

FAT0420

CS1461

FAT0430

CS1820

FAT0440

CS2230

FAT0450

CS0905

FAT0460

CS1250

FAT0470

CS1770

FAT0480

CS2652

FAT0490

CS0380

FAT0500

CS0730

FAT0510

CS1541

FAT0520

CS1240

FAT0530

CS2250

FAT0540

CS1820

FAT0550

CS3805

FAT0560

CS2820

FAT0570

CS7380

FAT0580

CS5960

FAT0590

CS5910

FAT0600

CS4500

FAT0610

CS2235

FAT0620

CS2750

FAT0630

CS5800
