A Guide to Graphite Packing: Types, Performance & Applications
A Comprehensive Guide to Graphite Packing in Industrial Applications

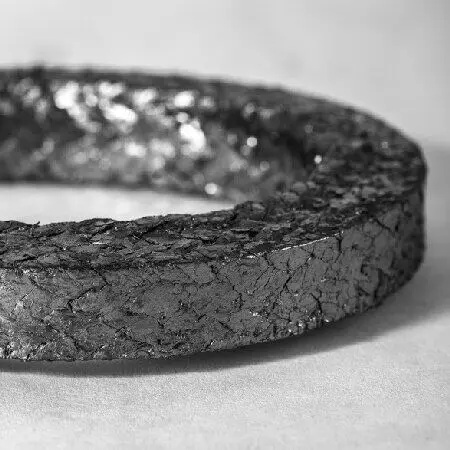

In industrial production, effective sealing is critical to ensure equipment performance and safety. Graphite Packing is one of the most reliable sealing materials, known for its ability to maintain excellent sealing under high temperatures, high pressures, and corrosive environments. It is typically manufactured by weaving reinforcing fibers and metal wires—including steel, copper, nickel, carbon fiber, pre-oxidized fiber, glass yarn, and graphite yarn—into a robust and durable structure.
Raw Materials and Manufacturing
Graphite packing combines high-strength reinforcing fibers and graphite yarn through precise weaving techniques. This combination provides outstanding physical and chemical stability, allowing the material to resist extreme temperatures, pressures, and corrosive chemicals, ensuring reliable performance in harsh industrial conditions.
Types of Graphite Packing
Graphite packing is available in several types based on crystalline structure:
-
Dense Crystalline Graphite Packing – High carbon content (60–98%), excellent durability, and used in specialized industrial applications.
-
Flake Graphite Packing – Features high lubricity and plasticity, derived from flake graphite ore, suitable for sealing and other industrial processes.
-
Cryptocrystalline (Amorphous) Graphite Packing – Fine crystalline structure, high grade, used in niche industrial applications requiring tight tolerances.
Applications
Graphite packing is versatile and widely applied:
-
High-temperature and high-pressure sealing: Used in valves, pumps, reactors, and steam systems.
-
Corrosive media sealing: Resistant to most acids, bases, and chemicals, ensuring safety in chemical and pharmaceutical industries.
-
Replacement of traditional sealing materials: Serves as a superior alternative to asbestos or aramid packing in demanding conditions.
-
Special industrial scenarios: High-water-based packing and lubricated graphite packing are used in shipping, seawater, cold water treatment, and low-pressure equipment.
Performance Advantages
Graphite packing offers key benefits:
-
Thermal stability: Maintains sealing up to 2200°C.
-
Chemical resistance: Resists most corrosive substances.
-
Excellent lubrication: Reduces friction and equipment wear.
-
High strength and modulus: Retains shape under high-pressure environments.
Conclusion
Graphite packing is a high-performance sealing solution for industrial equipment operating under harsh conditions. Its durability, chemical stability, and lubrication properties make it essential for valves, pumps, reactors, and other critical equipment. With types ranging from dense crystalline to cryptocrystalline graphite, each serves specific industrial needs, ensuring stable operations and production safety.
