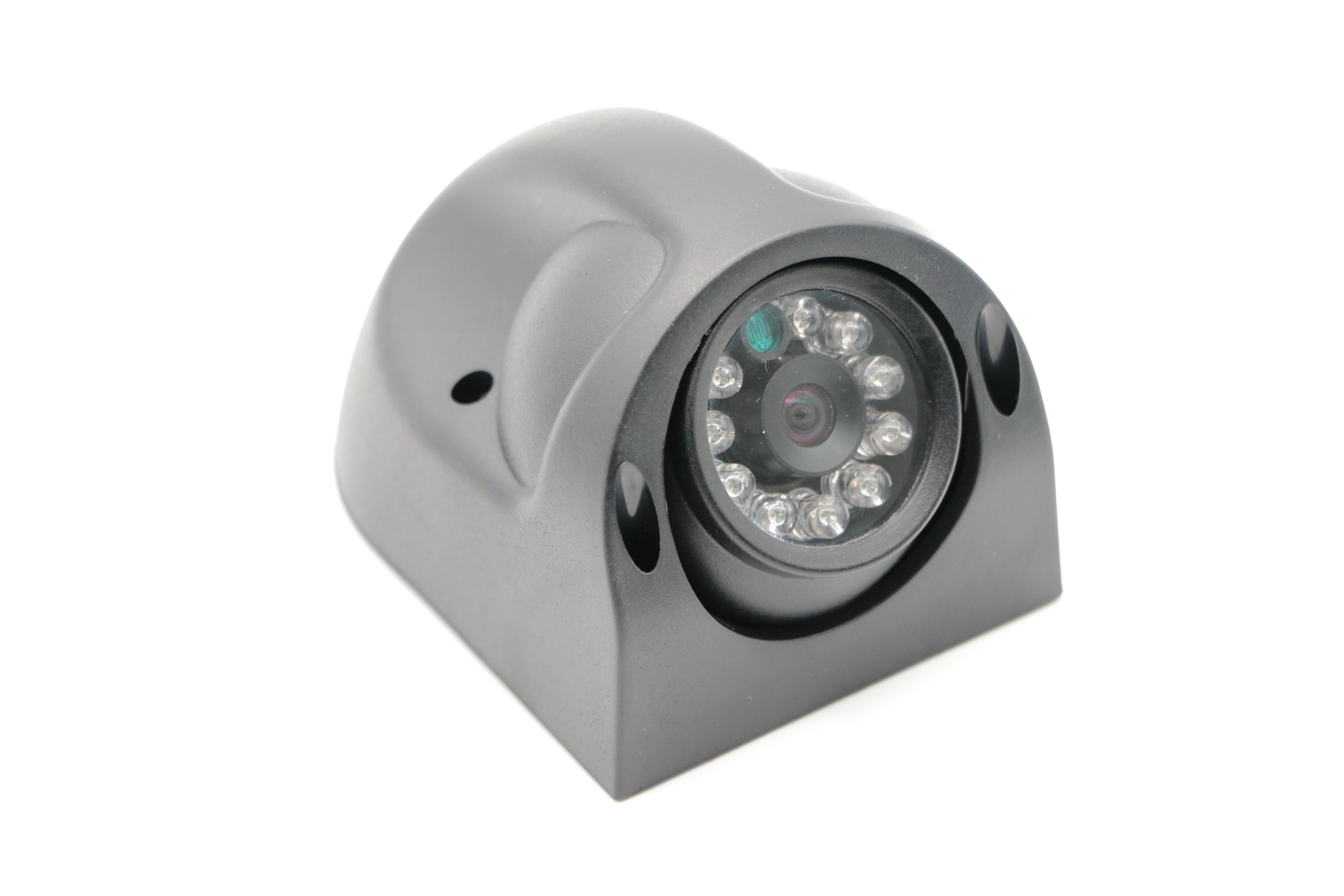

Automotive Infrared Camera
The 4K automotive infrared LED camera is a specialized camera designed for use in vehicles that captures high-resolution images and videos using infrared (IR) illumination provided by built-in infrared LED lights. These cameras combine the benefits of high-resolution imaging with the ability to capture clear images even in low-light or nighttime conditions using infrared illumination.
Performance Parameter of Automotive Infrared Camera
Model
CK-IR-4k-V2.0
REMARKS
Image Sensor
IMX415
Image Sensor Size
1/2.8
Effective Pixels
3840*2160
Pixel size
1.45μm x 1.45μm
Optical distortion
≤-1.2%
Image sensor Data output
AHD
Maximum Frame Rates and Resolution
Full resolution of 3840*2160 @30fps
SNR max
45dB
Dynamic range
76B
Min. Illumination
≥0.001LUX at F.No2.0
NO LED
Interface
AHD
Power requirements
12V or 5V
Storage temperature
-40℃ to 105℃
operating temperature
-30℃ to 85℃
Power Consumption
Max 500mW
LED IR-850/940
10 IR LEDs
OS
All Automotive systems
Lens size
M12 diameter；21mm TTL
Lens Construction
6G+IR
F/NO
2.0
EFL
2.46mm
FOV
D:87° H:73° V:57° ±3°
Shooting distance
Fixed Focus， 50cm-infinity
Details of Automotive Infrared Camera
Features
4K Resolution: The night vision infrared car camera offers a resolution of 3840 x 2160 pixels, providing detailed and high-quality imagery in both visible light and infrared modes.
Infrared Illumination: The infrared night vision camera for cars is equipped with built-in infrared LED lights that emit infrared light. These LEDs are not visible to the human eye but can be detected by the camera’s sensor.
Day/Night Capability: The ir camera for car seamlessly transitions between capturing images in visible light during the day and using infrared illumination at night or in low-light conditions.
Infrared Cut Filter: Some infrared camera for car may have an infrared cut filter that helps block visible light during infrared mode, enhancing the camera’s sensitivity to infrared wavelengths.
Real-time Monitoring: The camera provides real-time imaging and monitoring capabilities, making it suitable for applications requiring immediate feedback.
Integration with Visible Light: Many infrared car camera can overlay infrared images on top of visible light images, providing a comprehensive view of the scene.
Durability: Automotive infrared LED cameras are designed to withstand the challenges of a vehicle’s environment, including vibrations, temperature fluctuations, and potential exposure to elements.
Applications
Night Vision and Low-Light Driving: Infrared LED cameras provide enhanced visibility during nighttime driving, allowing drivers to see clearly in conditions where standard headlights might be insufficient.
Pedestrian and Animal Detection: The infrared illumination helps detect pedestrians, cyclists, and animals on the road, contributing to advanced driver assistance systems (ADAS).
Obstacle Detection: Infrared LED cameras can identify obstacles, debris, or other vehicles in low-visibility scenarios, improving safety.
Collision Avoidance: The camera’s infrared capabilities aid in detecting potential collisions or hazards in real time, enabling the driver to take appropriate action.
Parking Assistance: Infrared LED cameras assist in parking maneuvers by providing clear visibility of obstacles and assisting the driver in avoiding collisions.
Security and Surveillance: The 4k IR LED cameras can be used for vehicle security, monitoring, and surveillance, especially in poorly lit or dark environments.
Law Enforcement and Emergency Vehicles: Infrared LED cameras can be utilized by law enforcement or emergency vehicles for enhanced visibility during night patrols or emergency responses.
Commercial and Industrial Vehicles: Infrared LED cameras are valuable for commercial and industrial vehicles that operate during nighttime hours, such as delivery trucks or construction equipment.
Rear View and Backup Cameras: Infrared LED cameras are used as rear-view or backup cameras to provide clear visibility when reversing, even in the dark.
Off-Road and Adventure Riding: Infrared LED cameras can be used for off-road adventures, providing visibility in challenging terrains and low-light conditions.
Mass production capacity: 80k/month
Customization: support, any kind of FPC or PCB shape, change the Lens size, customizable FOV, housing, and so on.
