Delta Robot Pick And Place

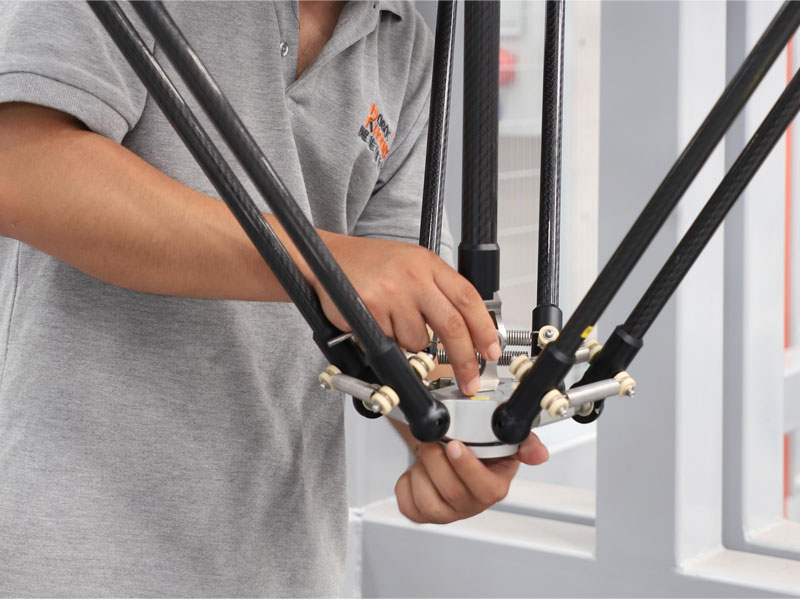

With competitive delta robot price, bat series delta robot pick and place has great advantages in operational applications like fast grasping and sorting as well as programming. Due to the fine delta robot parts, its positioning accuracy is superior, and its re-positioning accuracy is less than 0.1mm, which meets most application needs. It is also equipped with abundant function expansion. Its strong openness and flexibility allow itself a re-development. Delta robot pick and place can be flexibly applied to precise assembling, sorting, picking and placing, etc., because of the fast-grasping action.
Different Types of Delta Robot
BAT2000M-S15 Delta Robot
Maximum load 15kg.
Diameter of working space 2000mm.
Re-positioning accuracy 0.1mm.
BAT1600-S6 Delta Robot
Maximum load 6kg.
Diameter of working space 1600mm.
Re-positioning accuracy 0.1mm.
BAT1300-S6 Delta Robot
Maximum load 6kg.
Diameter of working space 1300mm.
Re-positioning accuracy 0.08mm.
BAT1300B-S50 Heavy Load Delta Robot
Maximum load 50kg.
Diameter of working space 1300mm.
Re-positioning accuracy 0.02mm.
BAT1100-S3 Delta Robot
Maximum load 3kg.
Diameter of working space 1100mm.
Re-positioning accuracy 0.03mm.
BAT1100M-E3 Delta Robot
Maximum load 3kg.
Diameter of working space 1100mm.
Re-positioning accuracy 0.08mm.
BAT1000B-S60 Heavy Load Delta Robot
Maximum load 60kg.
Diameter of working space 1000mm.
Re-positioning accuracy 0.02mm.
BAT800M-E3 Delta Robot
Maximum load 3kg.
Diameter of working space 800mm.
Re-positioning accuracy 0.08mm.
BAT800-S3 Delta Robot
Maximum load 3kg.
Diameter of working space 800mm.
Re-positioning accuracy 0.08mm.
Delta Robot Application
1
A delta robot takes a top-load-ability design and is compatible of various of grippers, such as delta spider robot that can all pick and place products quickly on the conveyor.
2
At present, electric drive is the most coommonly used driving mode of a delta robot. The driving motor of the modern industrial robots is generally a stepper motor, a DC servo motor or an AC servo motor, which is featured by its delta robot speed.
Delta Robot Programming
The built-in vision module in Robotphoenix’s control system takes 3D camera or 3D sensor to collect 3D information of the target and obtain the related “point-cloud”. According to the obtained point-cloud data, the required results are produced by using 3D algorithm, combining with 3D features. Compared with other industrial robots such as SCARA robot for sale, the delta robot is guided to complete the related work through internal communication, and multiple machines can share just one set of vision system.
