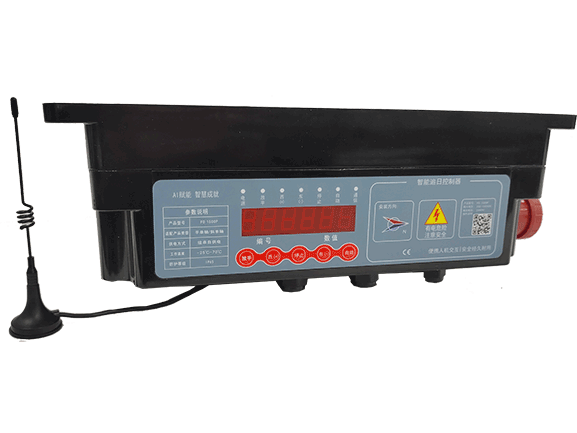

Solar Tracker Controller TCU – FD1500P-24D02
Its output power 150W with string self-powered, input voltage PV string DC power supply 500-1500VDC (wide voltage input), and output voltage 24VDC, which basically match all DC motors.
Features: Matching 350W DC motor, and come with lithium battery.
Advantages: string self-powered, no external power supply, for remote terrain complex no power supply project is more suitable for high-power output and strong power.
System Datasets of Solar Tracker Controller TCU – FD1500P-24D02
System Datasets
Models
FD 1500P-24D02
Types of tracking panel
horizontal single-axis/ tilted single-axis panel
Drive systems
slewing reducer + DC motor / linear actuator + DC motor
Motor power
350W
Daily power comsumption
≤0.1kWh
Types of control
active tracking closed-loop control (astronomical algorithm + location feedback)
Mechanical Datasets
Sizes
345mm*182mm*120mm
Box material
polymer material Makrolon®6487
Water-proof level
IP65
Display interface
YES
Keyboard interface
YES
Electrical Datasets
Types of power supply
PV series power supply (DC input) 32-48VDC (wide input voltage)
Output voltage
24VDC
Types of lithium battery
6AH（customized）
BMS battery management system
YES
Wind protection
YES
Nighttime reset protection
YES(confirmed)
Disturbing protection
YES (soft pounding protection, over current protection, over load protection)
Anti-shadow tracking
YES
Wind speed protection
10m/s-30m/s（3S）（customized）
Types of communication
ZigBee/LoRa（wireless）/ RS485（wired）
Angle range of tracking
±30°-±60°（customized）
Models of AI control
customized
Network background
customized
Work temperatures
-20℃-55℃
Note: Standard setting above. For customized setting, please contact the team of Lingyang Technology.
