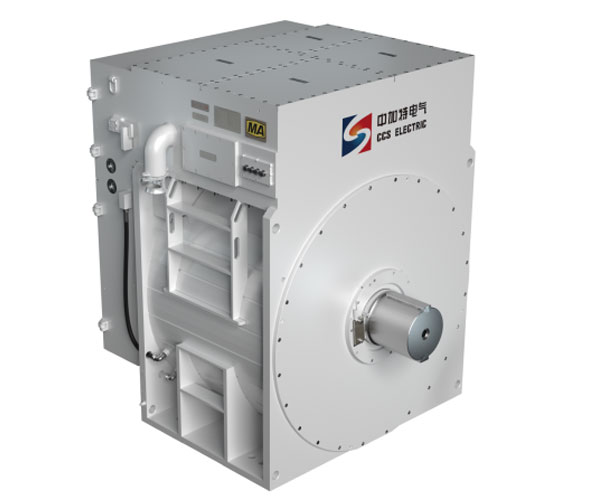

PM Integrated VFD Motor

Intelligent permanent magnet direct drive system is a comprehensive solution for equipment drive and control technology. VFD synchronous motor takes permanent magnet direct drive technology as the core and adopts special frequency converter, permanent magnet synchronous frequency conversion motor, and water cooler to replace traditional mechanical drive devices such as asynchronous motor, reducer and hydraulic coupler. At present, VFD synchronous motor is widely used in mines, coal, ports, electric power, building materials, chemical industry, and other fields.

Specifications of the PM Integrated VFD for Synchronous Motor

Voltage range

380V/400V/600V/660V/3300V/4160V/6000V/6600V/10000V

Frequency

50Hz/60HZ

Voltage fluctuation range at grid

-15%-10%

Frequency fluctuation at grid

±0.2Hz

Speed range

60rpm,75rpm,90rmp and so on

Output frequency

0-50Hz/60Hz

Power rating

45kW-2000kW

VFD principle

Voltage source inverter

Motor type

Synchronous motor

Control method

V/F or DTC without sensor

Starting torque

2 times

Frequency resolution

0.01Hz

Ingress protection

IP54 pr IP55

Installation

IMB3 or IMB5

Communication

CAN、RS485、Profinet、Ethernet IP etc

PM Motor with Integrated VFD Schematic

Model                                 Power（kW）     Speed（rpm）     Torque（Nm）          weight（kg）

STJVFT55-2-**x**（1140）       55                       75                         7003                        2100

TJVFT-250/40YC(1140)           250                       90                        26530                         8000

TJVFT-315/60YC(1140)           315                     60/75               50137/40110                  10900

TJVFT-400/60YC(1140)           400                     60/75               63666/50933                  13500

TJVFT-450/60YC(1140)           450                     60/75               71625/57300                  13500

TJVFT-500/60YC(1140)           500                     60/75               79583/63666                  14000

TJVFT-560/60YC(1140)           560                     60/75               89133/71306                  14000

TJVFT-800/60YC(1140)           800                     60/75            127333/101866                 16000

TYJVFT-900L/80YC(10)          1000                       60                        159167                     21000

Features of the PM Motor with Integrated VFD

The VFD synchronous motor has the characteristics of high VFD motor efficiency, energy-saving, large starting torque, excellent performance, small maintenance, and intelligent drive.

High efficiency and energy saving

The intermediate transmission link of the vfd synchronous motor is omitted, and the load is directly driven.

No rotor excitation, no rotor copper loss, high rated efficiency.

The light load area has excellent efficiency and high operation efficiency of the motor with integrated VFD.

Even VFD synchronous motor is at 0 speed, there is a relatively large torque

Heavy-duty starting: starting torque up to 2 times rated torque.

Smooth start to reduce the mechanical impact on load equipment.

Automatic step-less speed regulation according to load, reducing power consumption and prolonging the service life of load equipment.

Motor with integrated VFD has a Small starting current, reducing the impact on the power grid and reducing power grid failures.

VFD for synchronous motor has less footprint.

With integrated VFD motor technology, you can install the equipment in the narrow space as shown in our drawing.
