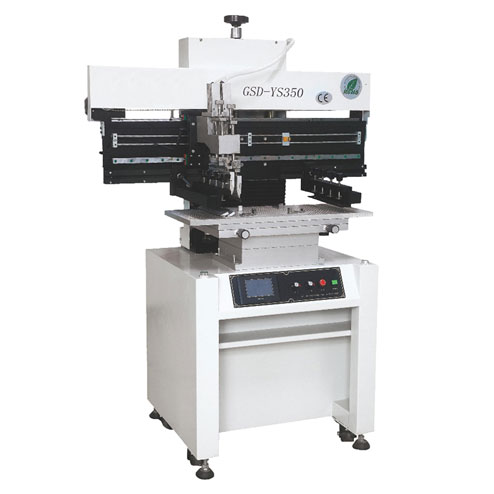

Semi-automatic Solder Printer YS350
Please move down to understand the parameters and information.
Specification of Semi-automatic Solder Printer YS350
Model
YS350
PCB size
Max:400*240mm
Printing area
500*320mm
PCB fixed system
Pin positioning
Frame size
L(550-650)*W(370-470)
Adjusting for table
front/rear±10mm，left/right±10mm
Printing Accuracy
±0.2mm
Repeating Accuracy
±0.2mm
PCB thickness
0.2-2.0mm
Air source
4-6kg/c㎡
Power supply
AC220V 50HZ
Dimension
L800*W700*H1700mm
Packing size
1050*900*1850mm
Net weight
230kg
Gross weight
280KG
Features of Semi-automatic Solder Printer YS350
PC control, touch screen display, and menu operation interface.
Floating scraper. Similar to the automatic printer, the scraper of a semi-automatic stencil printer can be floated freely up and down and can be adjusted automatically to level with the steel grid.
The pressure of the scraper is adjustable. The pressure on the steel grid is adjustable according to the length of the scraper.
