SMT ASSEMBLY LINE

TronStol, a competitive SMT machine manufacturer, provides customers professional SMT production line services and other services with different requirements.



TYPES OF SMT ASSEMBLY LINE

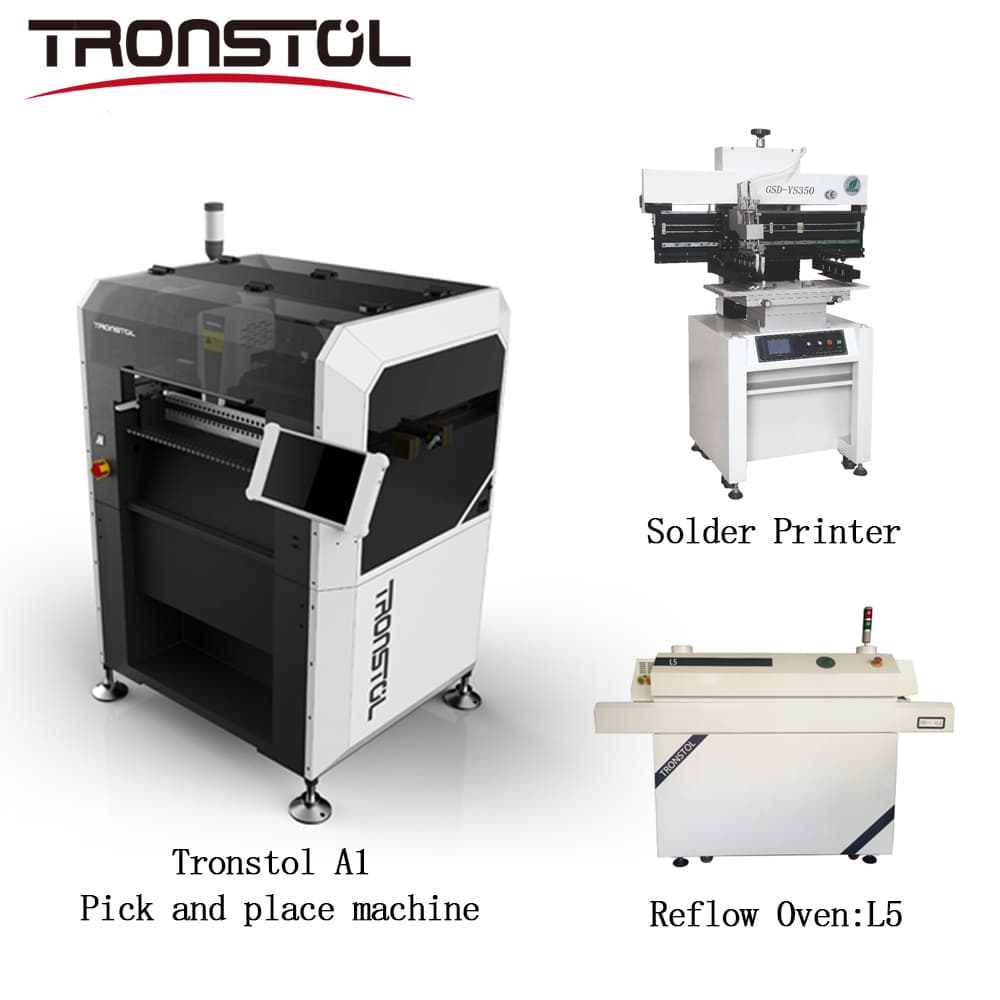

Prototype SMT Line

Tronstol 3V (Standard) Pick and Place Machine with Simple hand solder stencil printer and Small Reflow Oven- Economical Assembly Production Line SMT Electronics Machinery.



Small Production SMD Line

If you produce a small amount of PCB boards every month, are you worried about the delivery date of each outsourcing? Don’t worry, let SMT Line make money for you.



Mass Production SMT Line

If you are a mass production factory, choosing our SMT Line is the best choice. Our company has a professional sales team and a full-service after-sales team.



WHAT IS SMT ASSEMBLY?

With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board.  Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.







WHAT IS SMT MACHINE?

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Tronstol can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.



WHAT IS SMT PROCESS?

There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.



1. Solder Paste Printing



Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.



2. Components Placement



Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.



3. Reflow Soldering



Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
