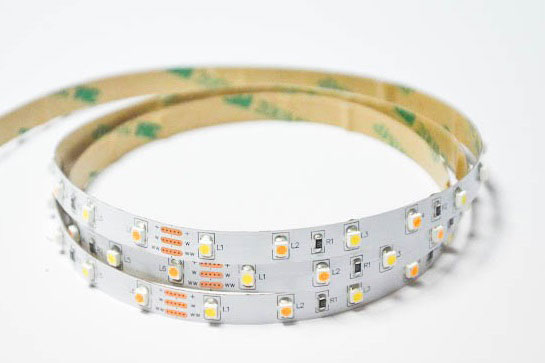

SMD3528 60LED/M Led Strip Light
SMD 3528 Constant Current LED Strip Light 60LED/M
Constant Current SMD 3528 Led Strip Lights manufacturer
Hanron Lighting Co. Limited’s SMD 3528 constant current LED Flexible Strip Lighting, 60LED/Meter, both waterproof and non-waterproof, is to satisfy customers seeking a high brightness of the lighting and brilliant color effects. By using build-in constant current IC, they obtain longer lifespan, longer in connection and uniform brightness. They are ideal light source for home decoration, hotel, KTV, cove ect.
Features of SMD 3528 Constant Current LED Strip Light 60LED/M:
1. TOP SMD3528 chip, high brightness, wide beam angle, low decay.
2. With build-in constant current IC, longer lifespan
3. Cuttable for each group, convenient for using
4. Longer in connection,uniform brightness
5. Easy to install for any bending
6. DC24V,safe and fit for universal use
7. Certification: CE & RoHS
Application of SMD 3528 Constant Current LED Strip Light 60LED/M:
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
Item NO.
LEDType
LED QTY(PCS)
Current(mA)
Voltage(V)
Power(W/M)
Color
Wave Length/C. T.
Luminous Flux/M
Protect Level
HR10-A12ANW60P
SMD3528
60
20
DC22-DC26
4.8
W
5500-6500K
390LM±10%
IP20/IP65/IP67/IP68
HR10-A12AWW60P
SMD3528
60
20
DC22-DC26
4.8
WW
2800-3200K
390LM±10%
HR10-A12ACW60P
SMD3528
60
20
DC22-DC26
4.8
CW
9000-12000K
390LM±10%
HR10-A12AR60P
SMD3528
60
20
DC22-DC26
4.8
RED
620-630nm
120LM±10%
HR10-A12AY60P
SMD3528
60
20
DC22-DC26
4.8
YELLOW
585-595nm
120LM±10%
HR10-A12AB60P
SMD3528
60
20
DC22-DC26
4.8
BLUE
465-475nm
72LM±10%
HR10-A12AG60P
SMD3528
60
20
DC22-DC26
4.8
GREEN
520-530nm
210LM±10%
Performance Curve of SMD 3528 Constant Current LED Strip Light 60LED/M
1. Wide range of working temperature(-30℃~40℃)
The current of LED keep stable from -30 ~40 .Uniform brightness , good performance.Better protect the LED from damage( as showm in black line)
2. Long connection(Max:10M)
Single end input,uniform brightness,good for connection( as shown in red line)
3. Wide voltage(22V~26V)
Voltage keeps stable within range,constant current good for LED ( as shown in green line)
Dimension of SMD 3528 Constant Current LED Strip Light 60LED/M:
Connect Drawing:
Installation of SMD 3528 Constant Current LED Strip Light 60LED/M
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
A. Installation with 3M tape
B. Installation with mounting Clip
Packaging:
1. Diagram
2. Notes from Constant Current SMD 3528 Led Strip Lights supplier in China-Hanron
3. *Reel each strip(5M) by one and put in AL foil bag;
4. *Put 15 reels into one inner box, total 75M strip;
5. *Put 2 inner boxes into one carton, total 150M strip.
