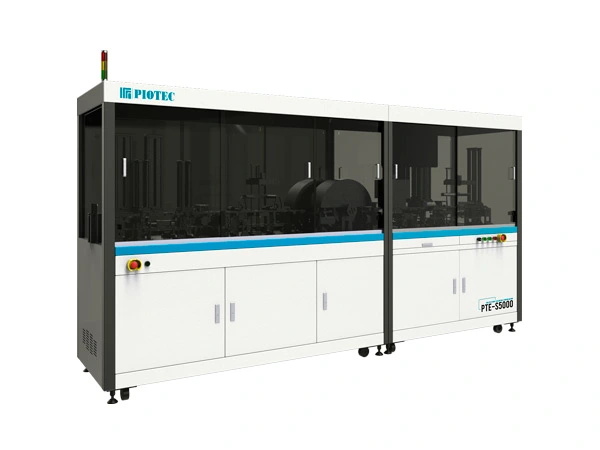

PTE-S5000 Smart Card Sorting and Ranking Machine
This product is designed for various types of smart cards that comply with ISO/IEC7816 regulations. It uses visual recognition systems, contact IC recognition, and non contact IC recognition to read and recognize information on the card surface or inside the chip. The identified data is matched with the database memory data information to determine the current card sequence number, thereby achieving card sorting and ranking.
During the production process, custom smart card that fail inspection and missing cards will be replaced with specially designed replacement identification cards. After each unit sorting is completed, a box sorting identification card will be inserted.
Specifications of PTE-S5000-Smart Card Sorting and Ranking Machine
PARAMETER
Capacity
5000uph
Dimension
3520mmx 880mmx 1920mm
Weight
1400kg
Power Supply
220V, 50Hz, 5KW
Air Supply
0.6Mpa
Noise
＜65dB
Operation Temperature
Room temperature: 23℃±3℃
Operation Humidity
50±10％
Communication Interface
Ethernet
Adapt to Card Type
Supports various ISO ID-1/CR-80 compliant cards such as PC, PET, PVC, ABS, etc. (53.98 mm x 85.60 mm)
Functions of PTE-S5000-Smart Card Sorting and Ranking Machine
PARAMETER
Card Issuing Unit
1 set of removable card box with a maximum capacity of 500 cards.
Flipping Unit
2 sets, adjusting the card direction to achieve recognition and verification of card surface information and chip information under different card surface conditions.
Identification Unit
2 sets, including OCR visual recognition, contact IC recognition, and non-contact IC recognition. Read and recognize the information on the surface of the card or inside the chip, and match it with the data in the database to determine the current card sequence number.
Cache Unit
1 set, cache cards that belong to the current sorting range but do not belong to the current sorting unit, and have automatic card sending and receiving function.
Card Sorting Unit
2 sets of sorting turntables, each set storing 250 cards, totaling 500 cards.
Verification Unit
1 set, including OCR visual verification, contact IC verification, and non-contact IC verification, which can read and verify card surface and chip internal information.
Card Receiving Unit
Adopting a turntable card receiving structure, equipped with 2 finished card receiving boxes with a capacity of 500 sheets, which can be automatically switched; A filling identification card box with a capacity of 200 sheets; A waste card box with a capacity of 200 sheets
Recycling Box
Recycling cards that do not belong to the current sorting range, with a capacity of 50 cards.
Advantages of PTE-S5000-Smart Card Sorting and Ranking Machine
WHY
01
It can be applied to various types of smart cards according to ISO/IEC 7816 regulations.
02
Automatically issue identification cards to ensure continuous card sorting in case of card shortage.
03
The cache unit can cache 2500 cards and supports automatic card sending and receiving functions.
04
Multiple verification methods can be used to verify the internal and external information of the card. Ensure that the information inside and outside the card is consistent and the card sorting preparation is correct.
05
Automatically issue a box splitting identification card, eliminating the need for re box splitting after receiving the card.
06
An efficient dual rotary sorting mechanism with fast speed and high stability.
